دیتاشیت ATSAML21J16B-AUT

SAM L21(E,G,J) Datasheet Summary

مشخصات دیتاشیت

نام دیتاشیت SAM L21(E,G,J) Datasheet Summary
حجم فایل 1814.082 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

دانلود دیتاشیت SAM L21(E,G,J) Datasheet Summary

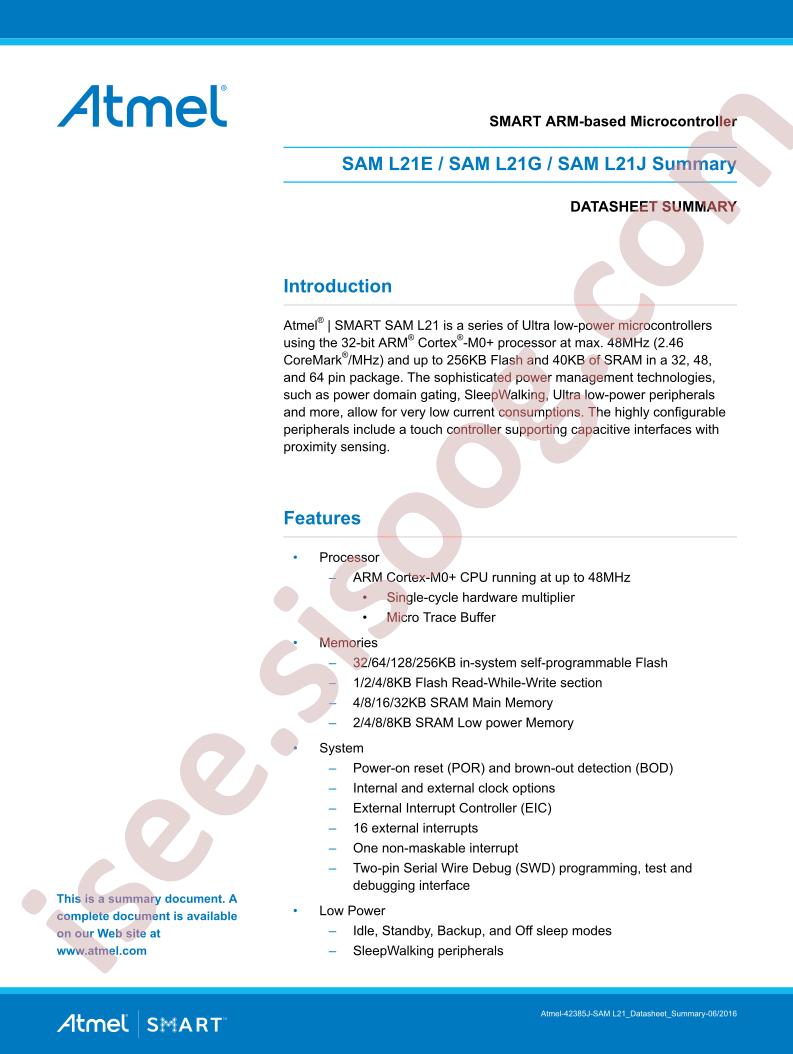

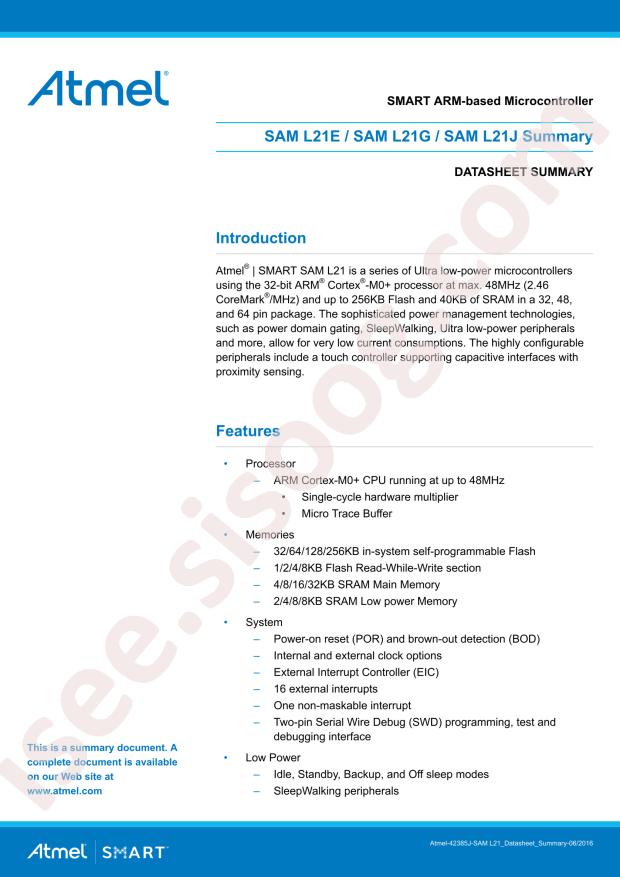

SAM L21(E,G,J) Datasheet Summary Datasheet

مشخصات

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: ARM-MSeries
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 8KB
  • Watchdog: Yes
  • ADC (Bit): 12bit
  • DAC (Bit): 12bit
  • Datasheet: Microchip Tech ATSAML21J16B-AUT
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 48MHz
  • GPIO Ports Number: 51
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: DMA;WDT;LIN(Local Interconnect Network)
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 64KB
  • Universal Serial Bus: Yes
  • communication protocol: -
  • Operating Voltage Range: 1.62V~3.63V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: TQFP-64(10x10)
  • Manufacturer: Microchip Tech
  • Series: SAM L21J
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Core Processor: ARM® Cortex®-M0+
  • Core Size: 32-Bit
  • Speed: 48MHz
  • Connectivity: I²C, LINbus, SCI, SPI, UART/USART, USB
  • Peripherals: DMA, POR, PWM, WDT
  • Number of I/O: 51
  • Program Memory Size: 64KB (64K x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.63V
  • Data Converters: A/D 20x12b; D/A 2x12b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 64-TQFP Exposed Pad
  • Supplier Device Package: 64-TQFP (10x10)
  • Base Part Number: ATSAML21J
  • detail: ARM® Cortex®-M0+ SAM L21J Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH 64-TQFP (10x10)
