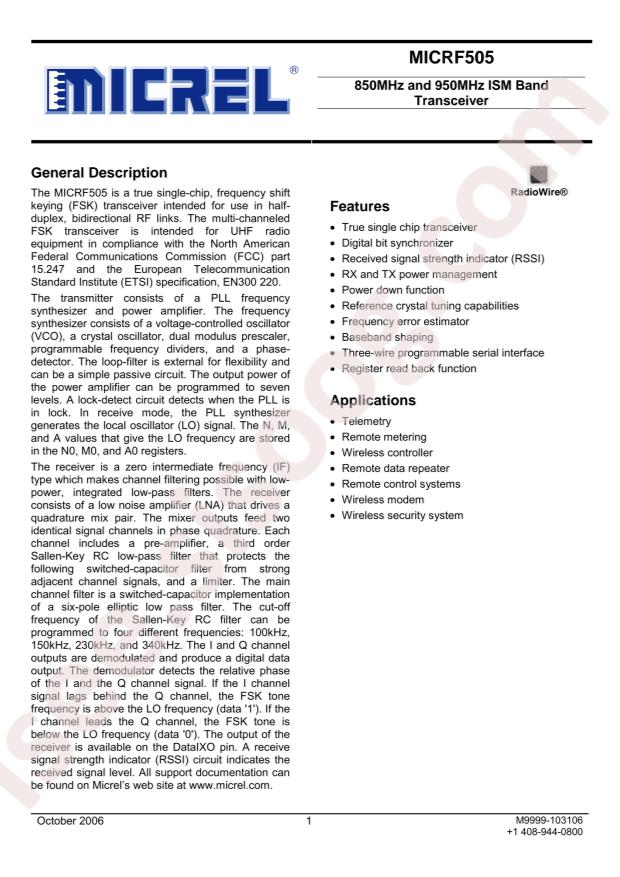

- دیتاشیت MICRF505YML-TR
MICRF505YML-TR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MICRF505YML-TR |
|---|---|
| حجم فایل | 104.712 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 42 |
دانلود دیتاشیت MICRF505YML-TR |
دانلود دیتاشیت |
|---|
سایر مستندات
MICRF505 42 pages
RF Basics Design Guide 38 pages
مشخصات فنی
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: 200Kbps
- Datasheet: Microchip Tech MICRF505YML-TR
- Interface: SPI
- Applications: General-purpose ISM<1GHz
- Frequency Range: 850MHz~950MHz
- Receive Current: 8.6mA
- Operating Voltage: 2V~2.5V
- Operating Temperature: -40°C~+85°C
- Current Of Transmitting: 14mA
- Package: QFN-32-EP(5x5)
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: TxRx Only
- RF Family/Standard: General ISM < 1GHz
- Protocol: -
- Modulation: FSK
- Frequency: 850MHz ~ 950MHz
- Data Rate (Max): 200kbps
- Power - Output: 10dBm
- Sensitivity: -111dBm
- Memory Size: -
- Serial Interfaces: SPI
- Voltage - Supply: 2V ~ 2.5V
- Current - Receiving: 8.6mA ~ 13.5mA
- Current - Transmitting: 14mA ~ 28mA
- Mounting Type: Surface Mount
- Package / Case: 32-VFQFN Exposed Pad, 32-MLF®
- Supplier Device Package: 32-MLF (5x5)
- detail: IC RF TxRx Only General ISM < 1GHz 850MHz ~ 950MHz 32-VFQFN Exposed Pad, 32-MLF®
