دیتاشیت ATXMEGA32E5-MUR
مشخصات دیتاشیت
| نام دیتاشیت | ATxmega32E5,16E5,8E5 Datasheet |
|---|---|
| حجم فایل | 2076.7 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 153 |

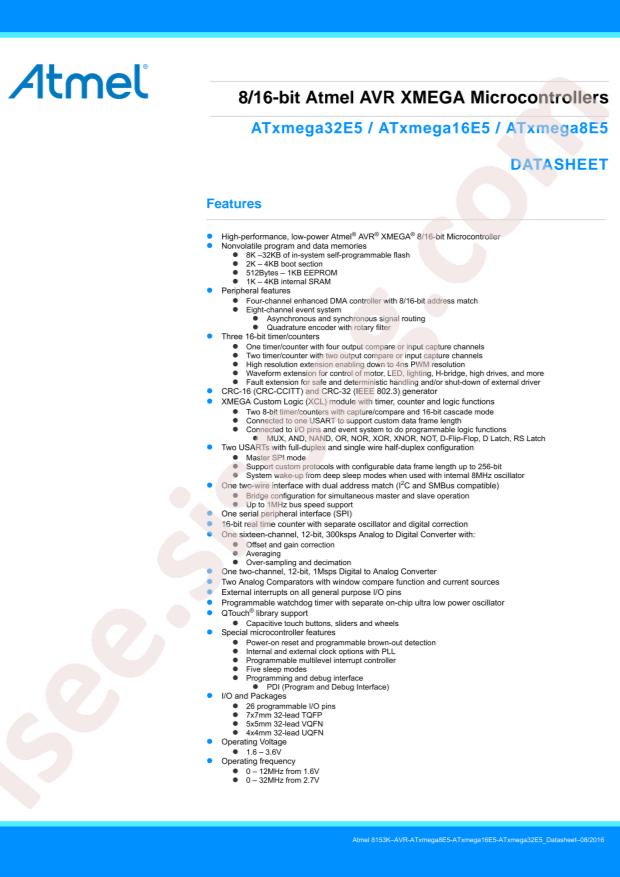

دانلود دیتاشیت ATxmega32E5,16E5,8E5 Datasheet |
ATxmega32E5,16E5,8E5 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: -
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: Microchip Tech ATXMEGA32E5-MUR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 32MHz
- GPIO Ports Number: 26
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.6V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-32-EP(5x5)
- Manufacturer: Microchip Tech
- Series: AVR® XMEGA® E5
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8/16-Bit
- Speed: 32MHz
- Connectivity: I²C, IrDA, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Number of I/O: 26
- Program Memory Size: 32KB (16K x 16)
- EEPROM Size: 1K x 8
- Voltage - Supply (Vcc/Vdd): 1.6V ~ 3.6V
- Data Converters: A/D 16x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 32-VFQFN Exposed Pad
- Supplier Device Package: 32-QFN (5x5)
- Base Part Number: ATXMEGA32
- detail: AVR AVR® XMEGA® E5 Microcontroller IC 8/16-Bit 32MHz 32KB (16K x 16) FLASH 32-QFN (5x5)
