دیتاشیت ATSAM3N1BB-AUR
مشخصات دیتاشیت
| نام دیتاشیت | SAM3N Series Datasheet |
|---|---|
| حجم فایل | 3121.4 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 766 |
دانلود دیتاشیت SAM3N Series Datasheet |

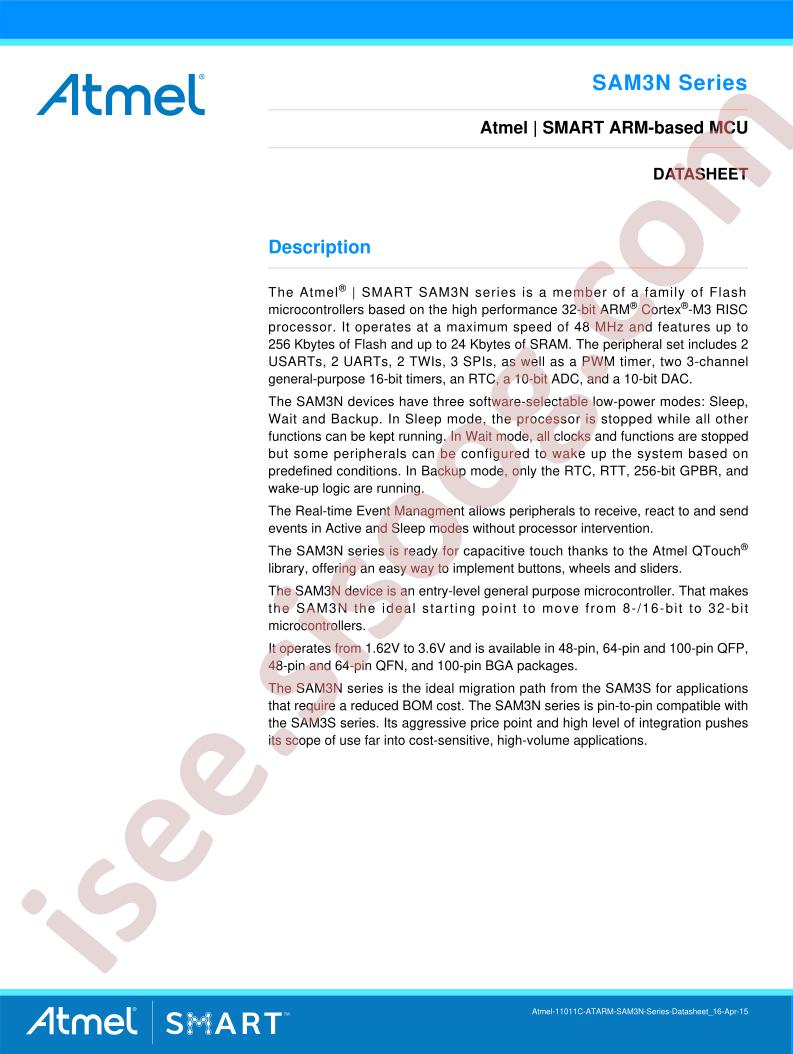

SAM3N Series Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M3
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: Yes
- ADC (Bit): 10bit
- DAC (Bit): 10bit
- Datasheet: Microchip Tech ATSAM3N1BB-AUR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 47
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 64KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.62V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-64(10x10)
- Manufacturer: Microchip Tech
- Series: SAM3N
- Packaging: Cut Tape (CT)
- Part Status: Discontinued at Digi-Key
- Core Processor: ARM® Cortex®-M3
- Core Size: 32-Bit
- Speed: 48MHz
- Connectivity: I²C, IrDA, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Number of I/O: 47
- Program Memory Size: 64KB (64K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V
- Data Converters: A/D 10x10b; D/A 1x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Base Part Number: ATSAM3N
- detail: ARM® Cortex®-M3 SAM3N Microcontroller IC 32-Bit 48MHz 64KB (64K x 8) FLASH 64-LQFP (10x10)
