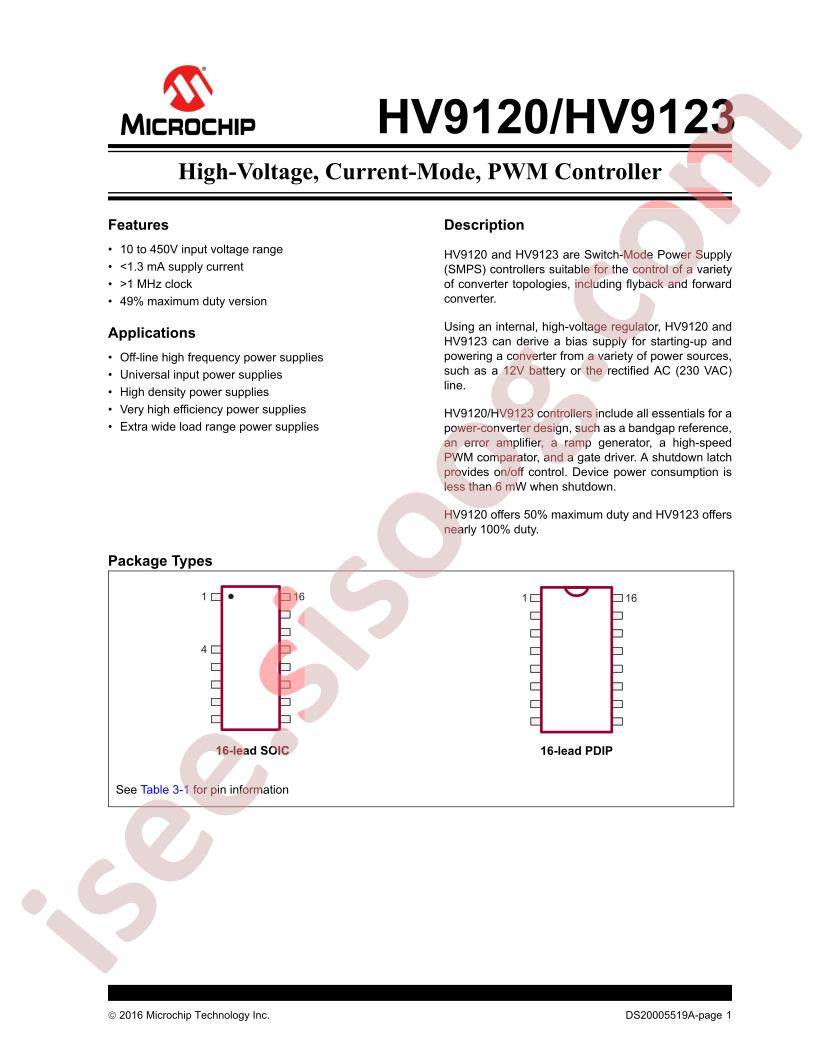

دیتاشیت HV9120NG-G-M901
مشخصات دیتاشیت
| نام دیتاشیت |
HV9120, HV9123
|
| حجم فایل |
860.22
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
18
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Flyback
-
Datasheet:
Microchip Tech HV9120NG-G-M901
-
Output Type:
-
-
Number of Outputs:
1
-
Switching Frequency:
3MHz
-
Operating Temperature:
-55°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-
Package:
SOP-16
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Phases:
1
-
Voltage - Supply (Vcc/Vdd):
10V ~ 450V
-
Frequency - Switching:
3MHz
-
Duty Cycle (Max):
49.4%
-
Synchronous Rectifier:
No
-
Clock Sync:
No
-
Serial Interfaces:
-
-
Control Features:
Enable, Frequency Control, Reset
-
Mounting Type:
Surface Mount
-
Package / Case:
16-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
16-SOIC
-
Base Part Number:
HV9120
-
detail:
Flyback Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 16-SOIC
