دیتاشیت ATA6830-PKH

ATA6830

مشخصات دیتاشیت

نام دیتاشیت ATA6830
حجم فایل 481.242 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت ATA6830

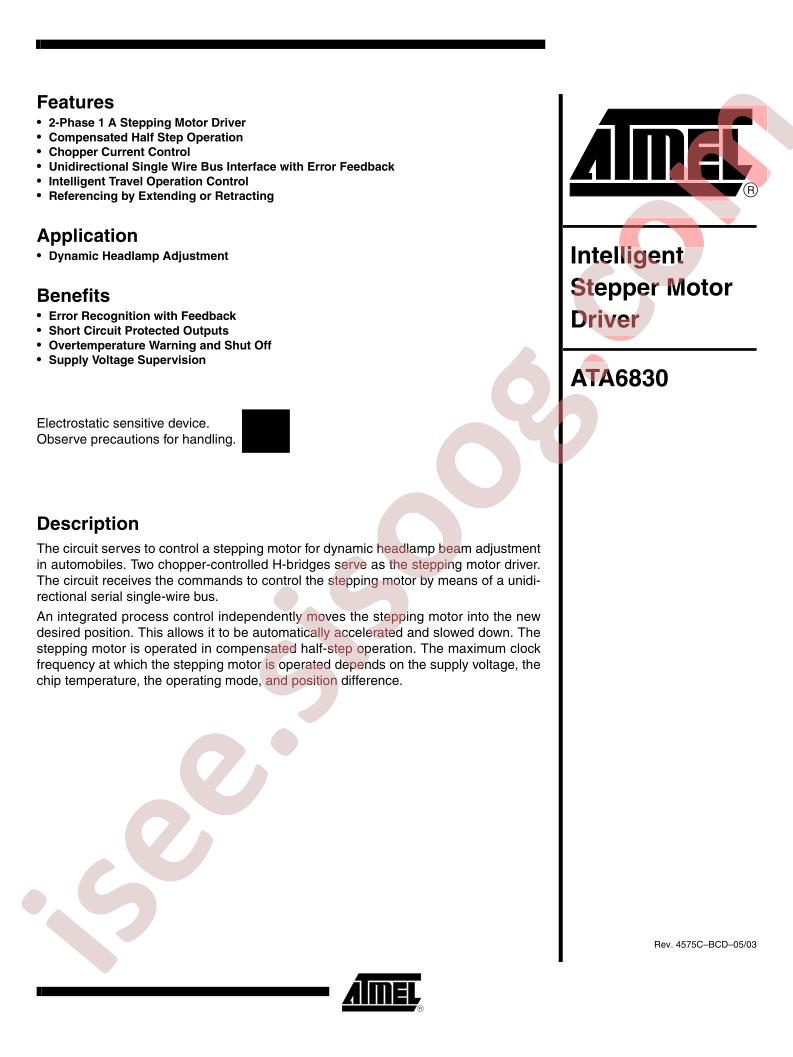

ATA6830 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: -
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Interface: Serial
  • Technology: NMOS, PMOS
  • Step Resolution: -
  • Applications: Automotive
  • Current - Output: 1.1A
  • Voltage - Supply: 7V ~ 20V
  • Voltage - Load: 7V ~ 20V
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 28-VQFN Exposed Pad
  • Supplier Device Package: 28-QFN (7x7)
  • Base Part Number: ATA6830
  • detail: Bipolar Motor Driver NMOS, PMOS Serial 28-QFN (7x7)
