دیتاشیت ADG811YRU-REEL

ADG811-813

مشخصات دیتاشیت

نام دیتاشیت ADG811-813
حجم فایل 432.536 کیلوبایت
نوع فایل pdf
تعداد صفحات 16

دانلود دیتاشیت ADG811-813

ADG811-813 Datasheet

مشخصات

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Switch Circuit: SPST - NC
  • Multiplexer/Demultiplexer Circuit: 1:1
  • Number of Circuits: 4
  • On-State Resistance (Max): 650mOhm
  • Channel-to-Channel Matching (ΔRon): 40mOhm
  • Voltage - Supply, Single (V+): 1.65V ~ 3.6V
  • Voltage - Supply, Dual (V±): -
  • Switch Time (Ton, Toff) (Max): 25ns, 5ns
  • -3db Bandwidth: 90MHz
  • Charge Injection: 30pC
  • Channel Capacitance (CS(off), CD(off)): 30pF, 35pF
  • Current - Leakage (IS(off)) (Max): 1nA
  • Crosstalk: -90dB @ 100kHz
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount

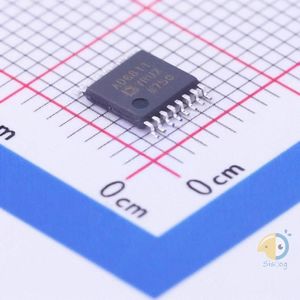

  • Package / Case: 16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 16-TSSOP
  • Base Part Number: ADG811
  • detail: 4 Circuit IC Switch 1:1 650mOhm 16-TSSOP
