AD8009AR-REEL7 Datasheet

AD8009

Datasheet specifications

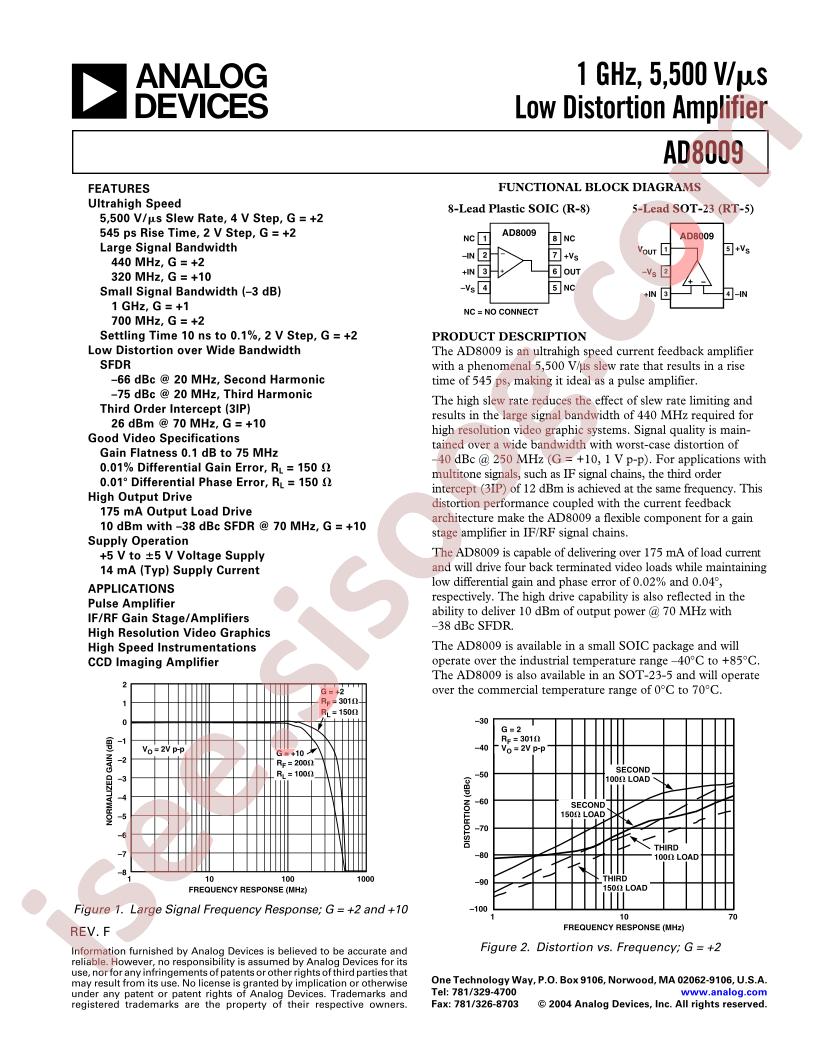

Datasheet's name AD8009
File size 295.701 KB
File type pdf
Number of pages 16

Download Datasheet AD8009

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Amplifier Type: Current Feedback
  • Number of Circuits: 1
  • Output Type: -
  • Slew Rate: 5500V/µs
  • -3db Bandwidth: 1GHz
  • Current - Input Bias: 50µA
  • Voltage - Input Offset: 2mV
  • Current - Supply: 16mA
  • Current - Output / Channel: 175mA
  • Voltage - Supply, Single/Dual (±): 5V ~ 12V, ±2.5V ~ 6V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 8-SOIC
  • Base Part Number: AD8009
  • detail: Current Feedback Amplifier 1 Circuit 8-SOIC
