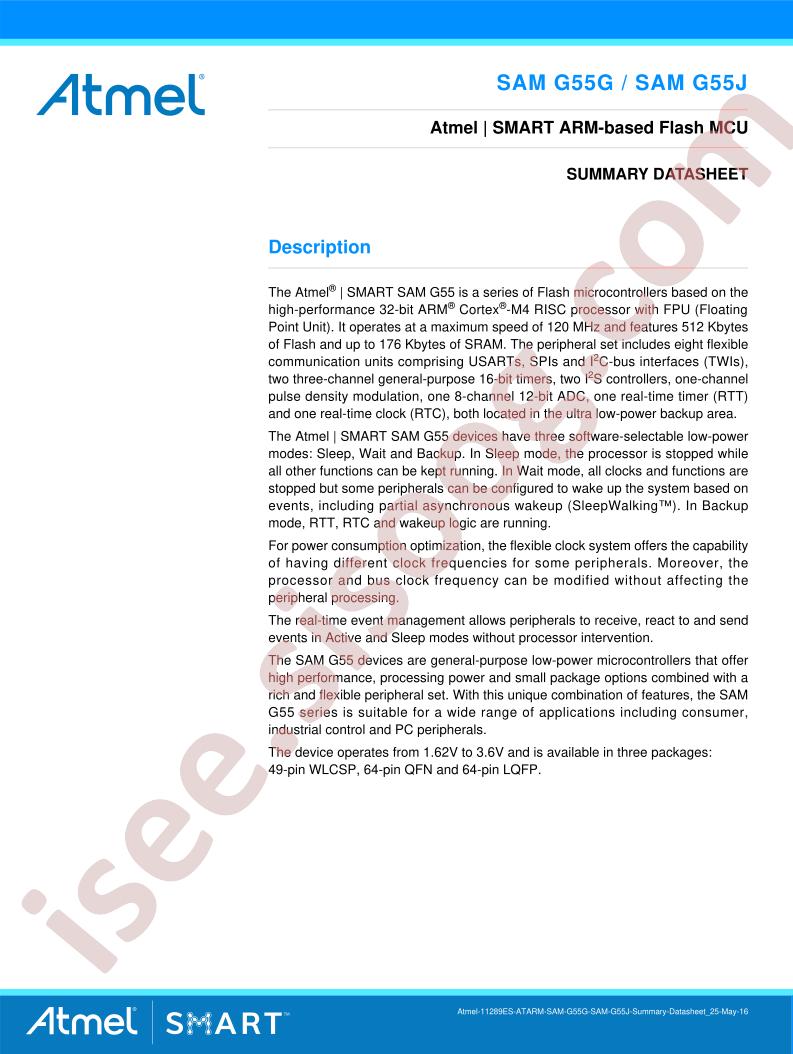

SAM G55G,J Summary Datasheet
Datasheet specifications
| Datasheet's name | SAM G55G,J Summary |
|---|---|
| File size | 232.604 KB |
| File type | |
| Number of pages | 16 |
Download Datasheet SAM G55G,J Summary |
Download Datasheet |
|---|
Other documentations
ATSAMG55G19B-UUT 16 pages
Technical specifications
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 176KB
- Watchdog: -
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATSAMG55J19B-AUT
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 120MHz
- GPIO Ports Number: 48
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 512KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.62V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-64(10x10)
- Manufacturer: Microchip Tech
- Series: SAM G55
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: ARM® Cortex®-M4
- Core Size: 32-Bit
- Speed: 120MHz
- Connectivity: I²C, SPI, UART/USART, USB
- Peripherals: DMA, I²S, POR, PWM, WDT
- Number of I/O: 48
- Program Memory Size: 512KB (512K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V
- Data Converters: A/D 8x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-LQFP
- Supplier Device Package: 64-LQFP (10x10)
- Base Part Number: ATSAMG55J
- detail: ARM® Cortex®-M4 SAM G55 Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 64-LQFP (10x10)
