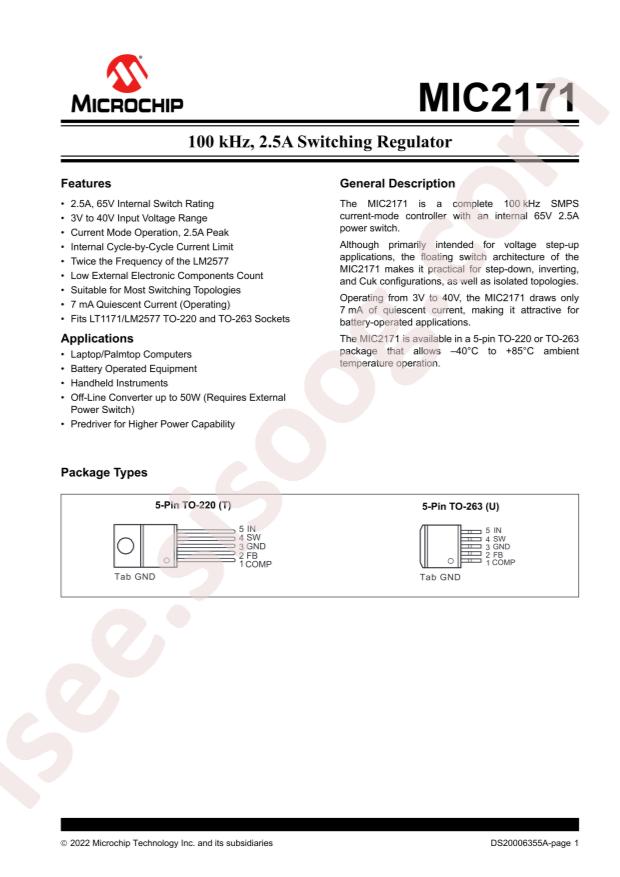

MIC2171WU-TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
MIC2171WU-TR
|
|
حجم فایل
|
62.151
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
24
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Step-down type;Buck-boost type
-
Topology:
Step-down;Boost;Cuk;Flyback
-
Datasheet:
Microchip Tech MIC2171WU-TR
-
Output Type:
Adjustable
-
Input Voltage:
3V~40V
-
Output Voltage:
65V
-
Number of Outputs:
1
-
Switching Frequency:
100kHz
-
Output Current (Max):
2.5A
-
Operating Temperature:
-40°C~+85°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
TO-263-5
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive or Negative, Isolation Capable
-
Voltage - Input (Min):
3V
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
-
-
Voltage - Output (Max):
65V (Switch)
-
Current - Output:
2.5A (Switch)
-
Frequency - Switching:
100kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
-
Supplier Device Package:
TO-263-5
-
Base Part Number:
MIC2171
-
detail:
Buck, Boost, Cuk, Flyback, Forward Converter Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 1 Output 2.5A (Switch) TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
