دیتاشیت ATXMEGA64B1-AUR
مشخصات دیتاشیت
| نام دیتاشیت | ATxmega128B1,64B1 |
|---|---|
| حجم فایل | 6963.83 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 145 |
دانلود دیتاشیت ATxmega128B1,64B1 |

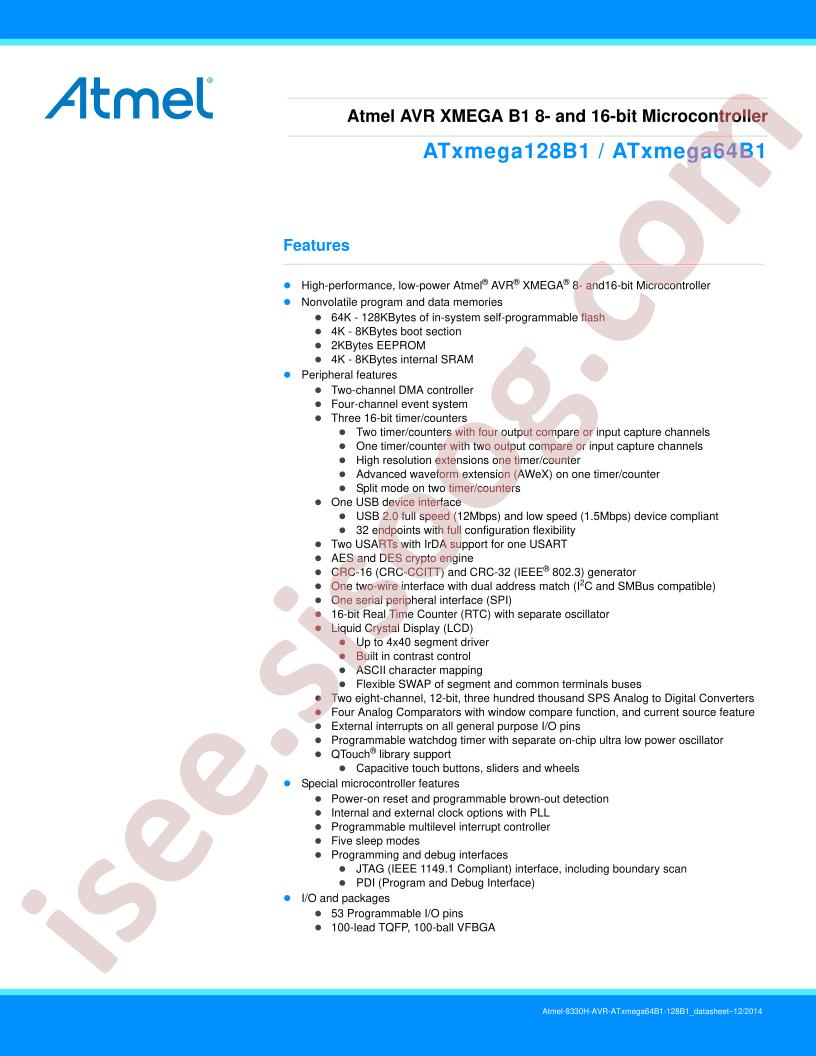

ATxmega128B1,64B1 Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATXMEGA64B1-AUR
- PWM (Bit): -
- LCD Module: Yes
- Real-Time Clock: -
- CPU Maximum Speed: 32MHz
- GPIO Ports Number: 53
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;LCD/LED Driver
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 32KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.6V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TQFP-100(14x14)
- Manufacturer: Microchip Tech
- Series: AVR® XMEGA® B1
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8/16-Bit
- Speed: 32MHz
- Connectivity: I²C, IrDA, SPI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
- Number of I/O: 53
- Program Memory Size: 64KB (32K x 16)
- EEPROM Size: 2K x 8
- Voltage - Supply (Vcc/Vdd): 1.6V ~ 3.6V
- Data Converters: A/D 16x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 100-TQFP
- Supplier Device Package: 100-TQFP (14x14)
- Base Part Number: ATXMEGA64
- detail: AVR AVR® XMEGA® B1 Microcontroller IC 8/16-Bit 32MHz 64KB (32K x 16) FLASH 100-TQFP (14x14)
