دیتاشیت ATSAM4S8BB-MNR
مشخصات دیتاشیت

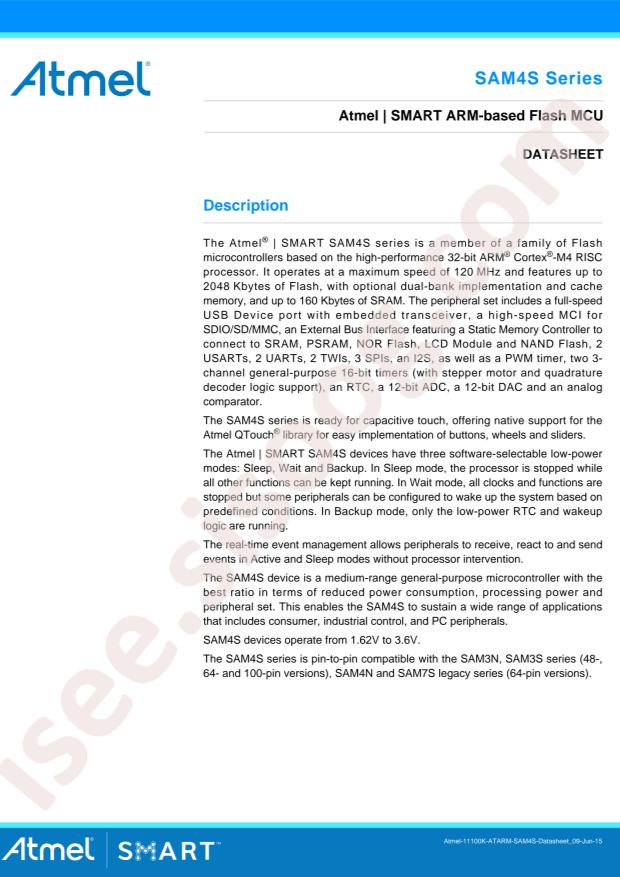

| نام دیتاشیت | SAM4S Series Datasheet |
|---|---|
| حجم فایل | 5721.906 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 1269 |
دانلود دیتاشیت SAM4S Series Datasheet |
SAM4S Series Datasheet Datasheet |
|---|
مشخصات
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 128KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: Microchip Tech ATSAM4S8BB-MNR
- PWM (Bit): -
- 8Bit Timer: -
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 120MHz
- GPIO Ports Number: 47
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;WDT;IrDA
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 512KB
- Universal Serial Bus: Yes
- communication protocol: -
- Operating Voltage Range: 1.62V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+105°C
- Secure Digital Input and Output: -
- Package: QFN-64-EP(9x9)
- Manufacturer: Microchip Tech
- Series: SAM4S
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: ARM® Cortex®-M4
- Core Size: 32-Bit
- Speed: 120MHz
- Connectivity: I²C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- Number of I/O: 47
- Program Memory Size: 512KB (512K x 8)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.6V
- Data Converters: A/D 11x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-QFN (9x9)
- Base Part Number: ATSAM4S8
- detail: ARM® Cortex®-M4 SAM4S Microcontroller IC 32-Bit 120MHz 512KB (512K x 8) FLASH 64-QFN (9x9)
