دیتاشیت AT91SAM9R64-CU-999

AT91SAM9R64/RL64 Summary

مشخصات دیتاشیت

نام دیتاشیت AT91SAM9R64/RL64 Summary
حجم فایل 927.247 کیلوبایت
نوع فایل pdf
تعداد صفحات 52

دانلود دیتاشیت AT91SAM9R64/RL64 Summary

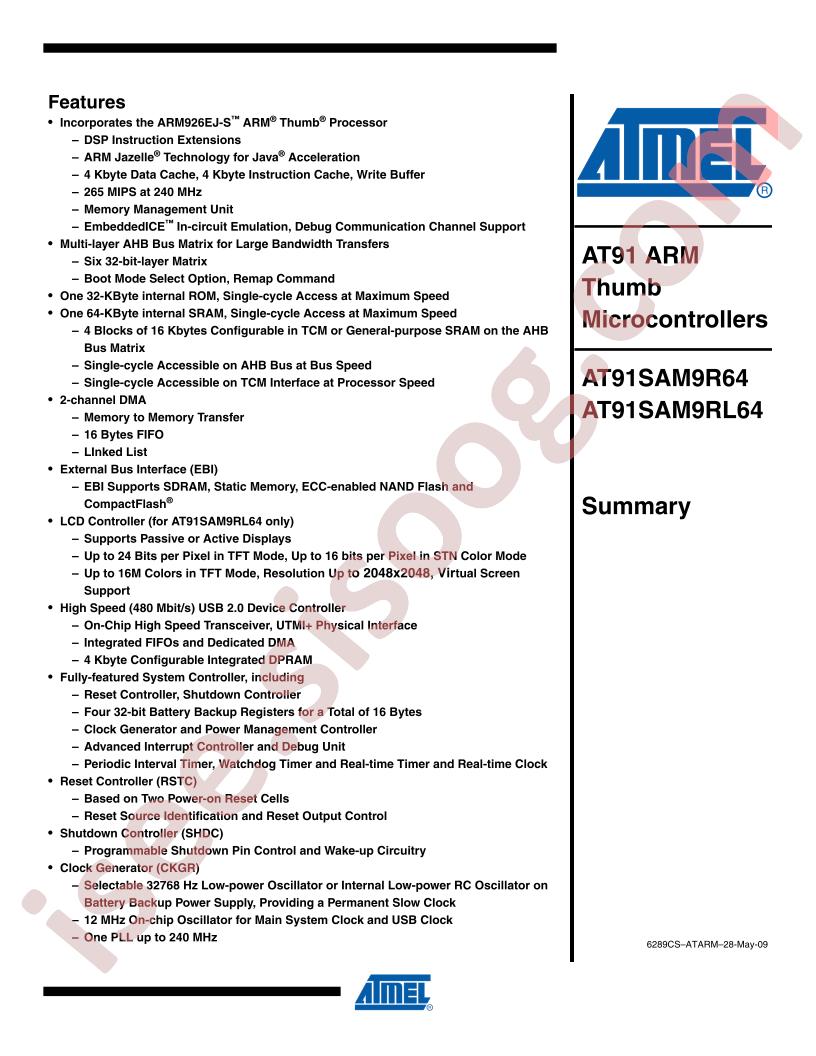

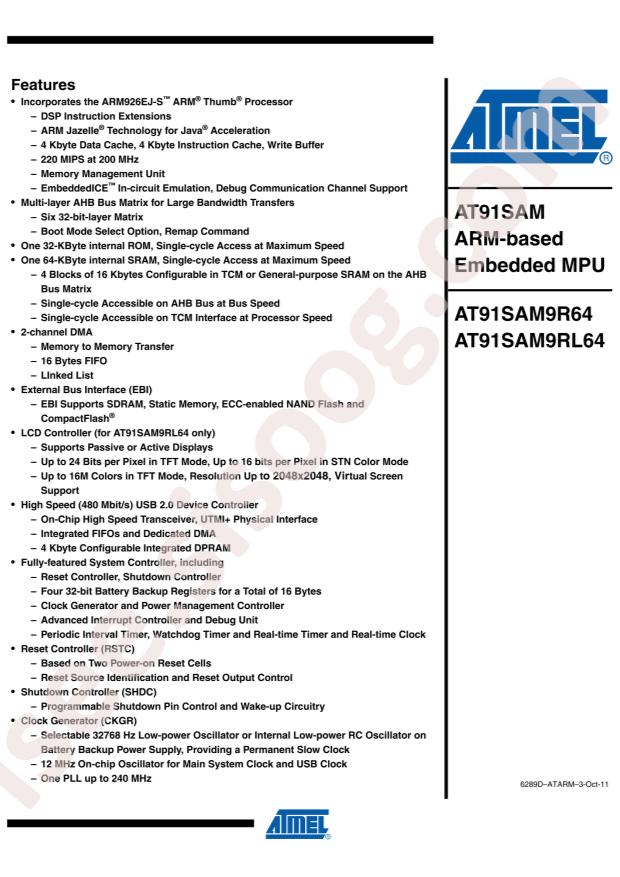

AT91SAM9R64/RL64 Summary Datasheet

مشخصات

  • RoHS: true
  • EEPROM: -
  • CPU Core: ARMOther series
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 72KB
  • Watchdog: Yes
  • ADC (Bit): 10bit
  • DAC (Bit): -
  • Datasheet: Microchip Tech AT91SAM9R64-CU-999
  • PWM (Bit): -
  • Real-Time Clock: -
  • CPU Maximum Speed: 240MHz
  • GPIO Ports Number: 49
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: PWM
  • Program Memory Type: FLASH
  • Direct Memory Access: -
  • Program Storage Size: 32KB
  • Universal Serial Bus: Yes
  • communication protocol: -
  • Operating Voltage Range: 1.65V~3.6V
  • Infrared Data Association: -
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: BGA-144
  • Manufacturer: Microchip Tech
  • Series: SAM9R
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Core Processor: ARM926EJ-S
  • Core Size: 16/32-Bit
  • Speed: 240MHz
  • Connectivity: EBI/EMI, I²C, Memory Card, SPI, SSC, UART/USART, USB
  • Peripherals: AC'97, POR, PWM, WDT
  • Number of I/O: 49
  • Program Memory Size: 32KB (32K x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 1.65V ~ 3.6V
  • Data Converters: A/D 3x10b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 144-LFBGA
  • Supplier Device Package: 144-BGA (13x13)
  • Base Part Number: AT91SAM9R64
  • detail: ARM926EJ-S SAM9R Microcontroller IC 16/32-Bit 240MHz 32KB (32K x 8) ROM 144-BGA (13x13)
