دیتاشیت ADS805E/1KG4

ADS805 Datasheet

مشخصات دیتاشیت

نام دیتاشیت ADS805 Datasheet
حجم فایل 988.493 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

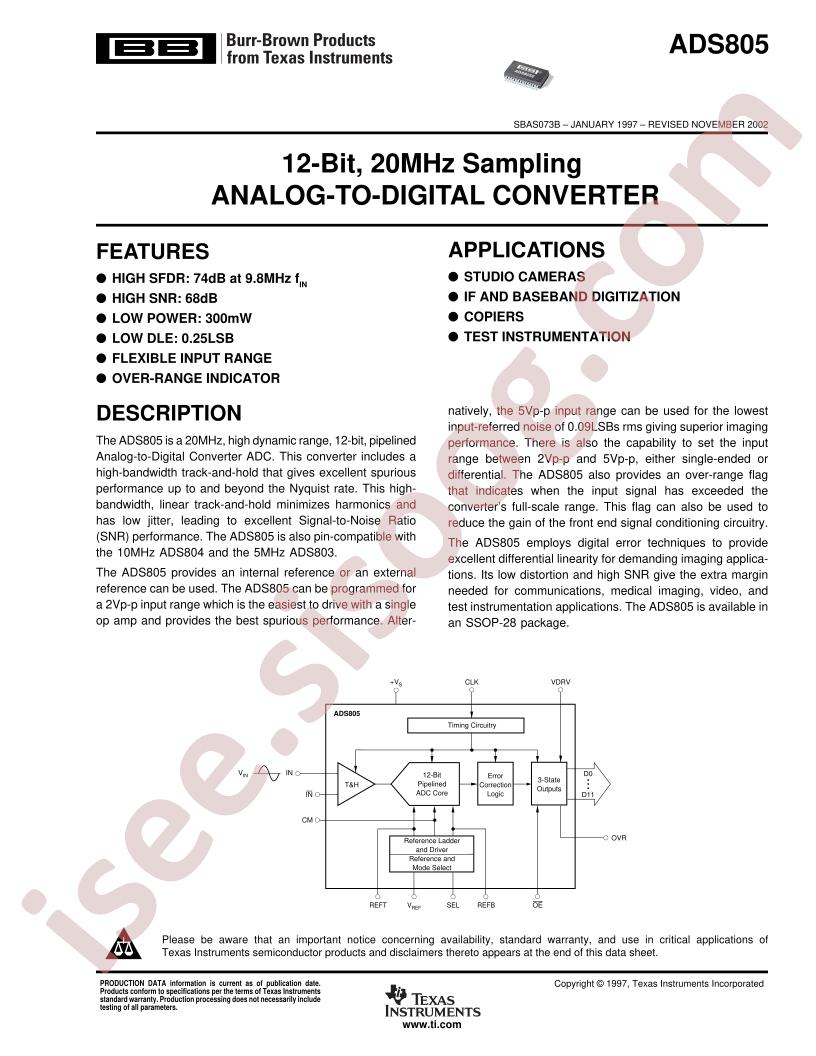

دانلود دیتاشیت ADS805 Datasheet

ADS805 Datasheet Datasheet

مشخصات

  • Sampling Rate (Per Second): 20M
  • Number of Bits: 12
  • Package / Case: 28-SSOP (0.209", 5.30mm Width)
  • Reference Type: External, Internal
  • Features: -
  • Part Status: Active
  • Series: -
  • Base Part Number: ADS805
  • Number of A/D Converters: 1
  • Mounting Type: Surface Mount
  • Configuration: S/H-ADC
  • Number of Inputs: 1
  • Data Interface: Parallel
  • Operating Temperature: -40°C ~ 85°C
  • Supplier Device Package: 28-SSOP
  • Voltage - Supply, Digital: 5V
  • Architecture: Pipelined
  • Manufacturer: Texas Instruments
  • Input Type: Differential, Single Ended
  • Ratio - S/H:ADC: 1:1
  • Packaging: Cut Tape (CT)
  • Voltage - Supply, Analog: 5V
  • detail: 12 Bit Analog to Digital Converter 1 Input 1 Pipelined 28-SSOP
