دیتاشیت AT32UC3B0512-Z2UR

AT32UC3B Series Summary

مشخصات دیتاشیت

نام دیتاشیت AT32UC3B Series Summary
حجم فایل 1704.764 کیلوبایت
نوع فایل pdf
تعداد صفحات 107

دانلود دیتاشیت AT32UC3B Series Summary

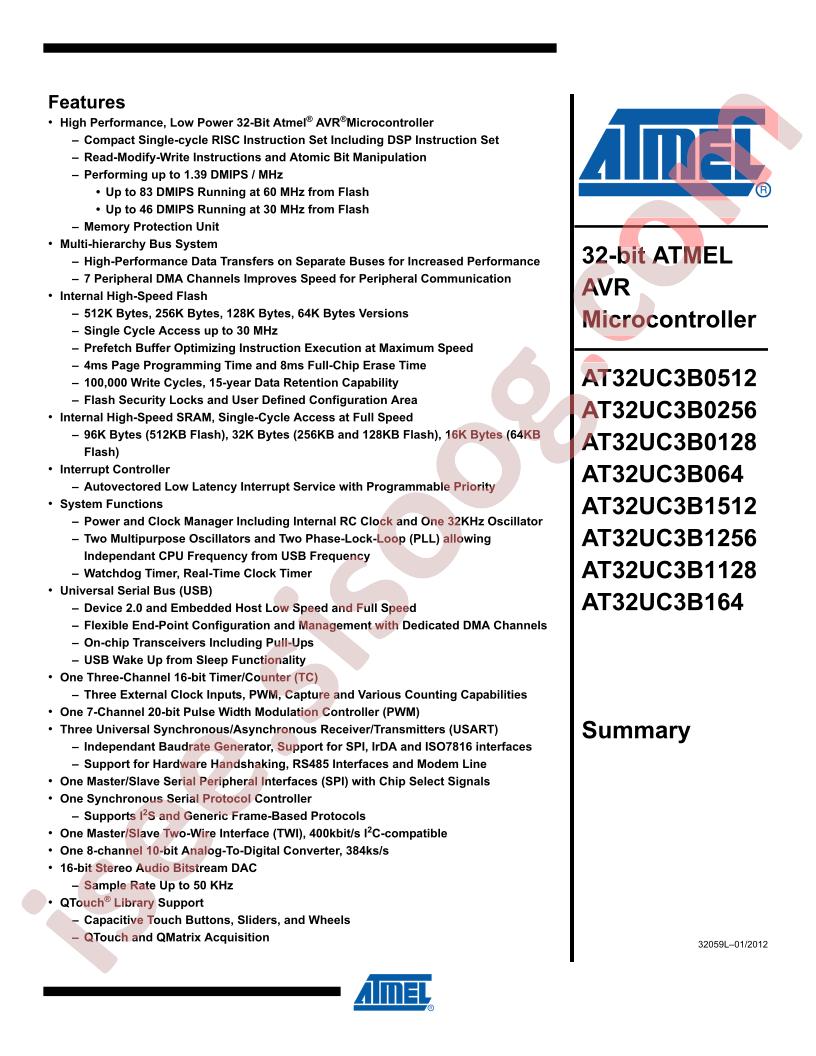

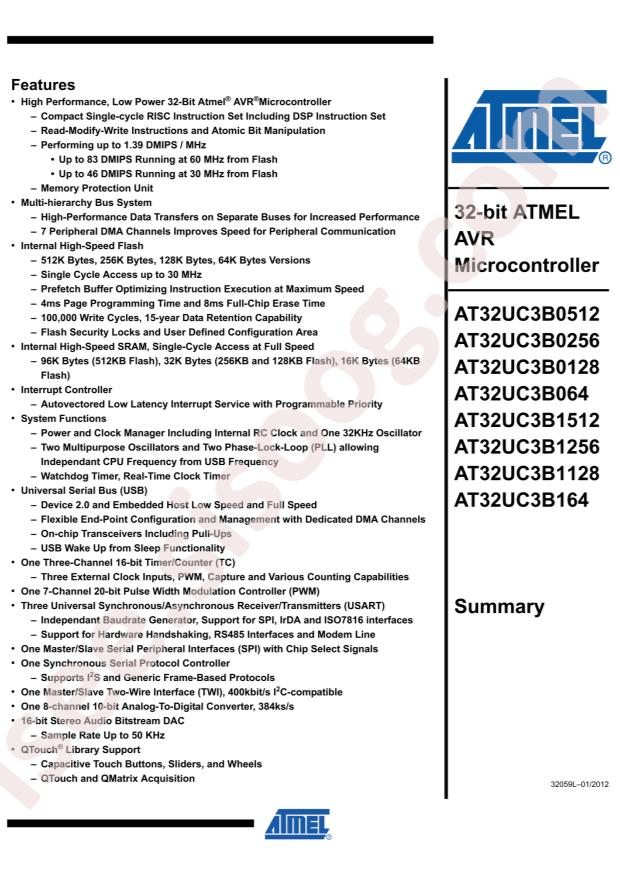

AT32UC3B Series Summary Datasheet

مشخصات

  • CAN: -
  • I2C: -
  • I2S: -
  • SPI: -
  • RoHS: true
  • EEPROM: -
  • CPU Core: AVR
  • Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
  • RAM Size: 96KB
  • Watchdog: Yes
  • ADC (Bit): 10bit
  • DAC (Bit): -
  • Datasheet: Microchip Tech AT32UC3B0512-Z2UR
  • PWM (Bit): -
  • 8Bit Timer: -
  • UART/USART: -
  • 16Bit Timer: -
  • 32Bit Timer: -
  • Real-Time Clock: -
  • CPU Maximum Speed: 60MHz
  • GPIO Ports Number: 44
  • Low-Voltage Detect: Yes
  • CCP Capture/Compare: -
  • Internal Comparator: -
  • Internal Oscillator: Yes
  • Peripheral/Function: DMA;WDT;IrDA
  • Program Memory Type: FLASH
  • Direct Memory Access: Yes
  • Program Storage Size: 512KB
  • Universal Serial Bus: Yes
  • communication protocol: -
  • Operating Voltage Range: 1.65V~3.6V
  • Infrared Data Association: Yes
  • Operating Temperature Range: -40°C~+85°C
  • Secure Digital Input and Output: -
  • Package: QFN-64-EP(9x9)
  • Manufacturer: Microchip Tech
  • Series: AVR®32 UC3 B
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Core Processor: AVR
  • Core Size: 32-Bit
  • Speed: 60MHz
  • Connectivity: I²C, IrDA, SPI, SSC, UART/USART, USB
  • Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
  • Number of I/O: 44
  • Program Memory Size: 512KB (512K x 8)
  • EEPROM Size: -
  • Voltage - Supply (Vcc/Vdd): 1.65V ~ 3.6V
  • Data Converters: A/D 8x10b
  • Oscillator Type: Internal
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 64-VFQFN Exposed Pad
  • Supplier Device Package: 64-QFN (9x9)
  • Base Part Number: AT32UC3B0512
  • detail: AVR AVR®32 UC3 B Microcontroller IC 32-Bit 60MHz 512KB (512K x 8) FLASH 64-QFN (9x9)
