AD7864ASZ-3REEL Datasheet

AD7864

Datasheet specifications

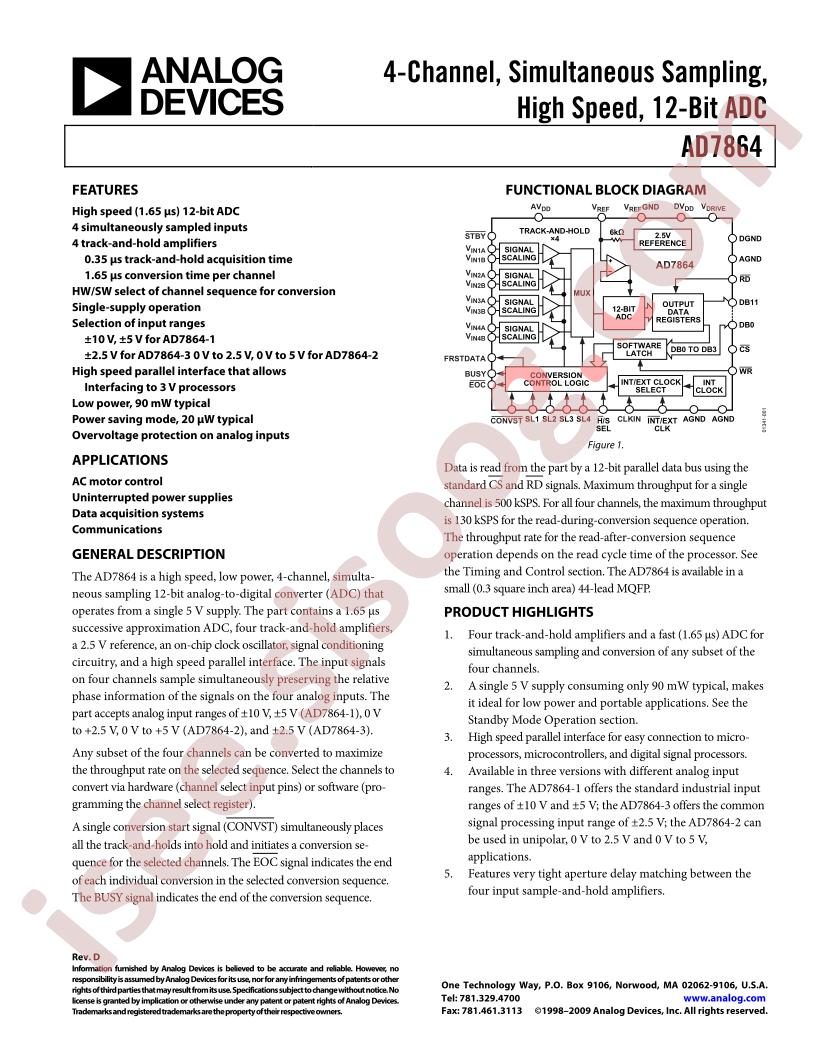

Datasheet's name AD7864
File size 771.914 KB
File type pdf
Number of pages 28

Download Datasheet AD7864

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Number of Bits: 12
  • Sampling Rate (Per Second): 520k
  • Number of Inputs: 4
  • Input Type: Single Ended
  • Data Interface: Parallel
  • Configuration: S/H-MUX-ADC
  • Ratio - S/H:ADC: 4:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External, Internal
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Features: Simultaneous Sampling
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 44-QFP
  • Supplier Device Package: 44-MQFP (10x10)
  • Mounting Type: Surface Mount
  • Base Part Number: AD7864
  • detail: 12 Bit Analog to Digital Converter 4 Input 1 SAR 44-MQFP (10x10)
