AD8616ARMZ-R2 Datasheet

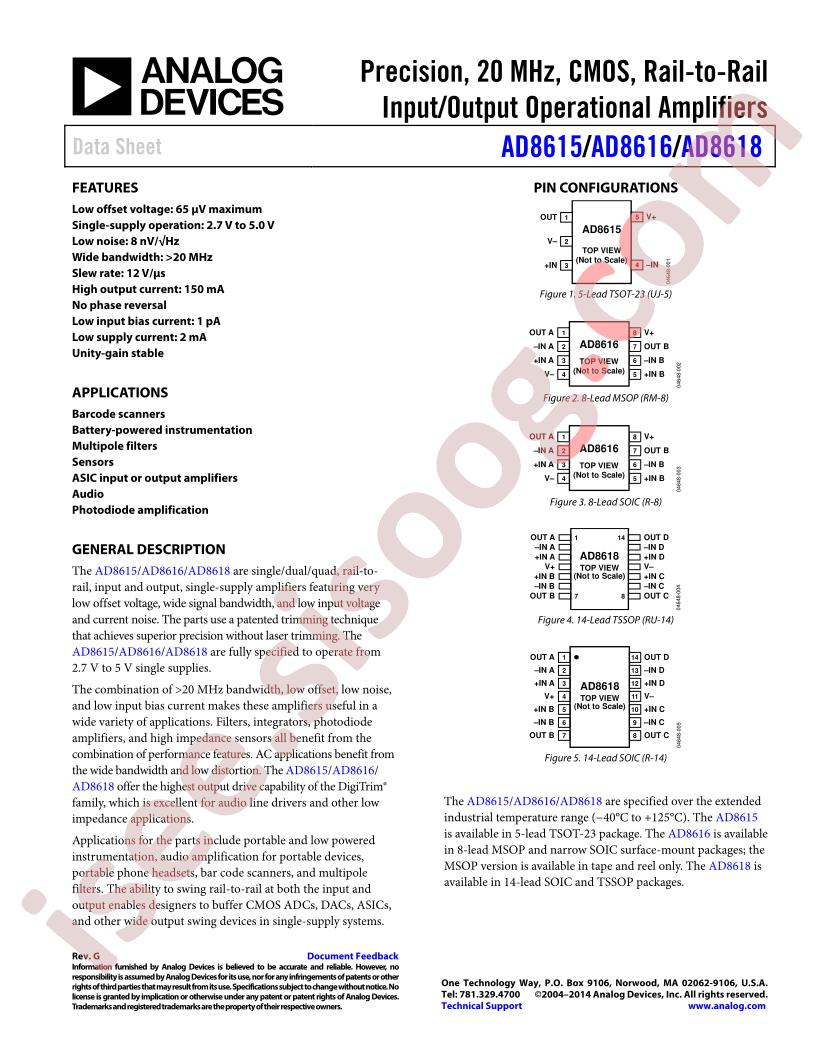

AD8615,16,18

Datasheet specifications

Datasheet's name AD8615,16,18
File size 452.9 KB
File type pdf
Number of pages 20

Download Datasheet AD8615,16,18

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Analog Devices Inc.
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Amplifier Type: General Purpose
  • Number of Circuits: 2
  • Output Type: Rail-to-Rail
  • Slew Rate: 12V/µs
  • Gain Bandwidth Product: 24MHz
  • Current - Input Bias: 0.2pA
  • Voltage - Input Offset: 23µV
  • Current - Supply: 1.7mA
  • Current - Output / Channel: 150mA
  • Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
  • Supplier Device Package: 8-MSOP
  • Base Part Number: AD8616
  • detail: General Purpose Amplifier 2 Circuit Rail-to-Rail 8-MSOP
