دیتاشیت AT91SAM9G20B-CU-999

مشخصات دیتاشیت

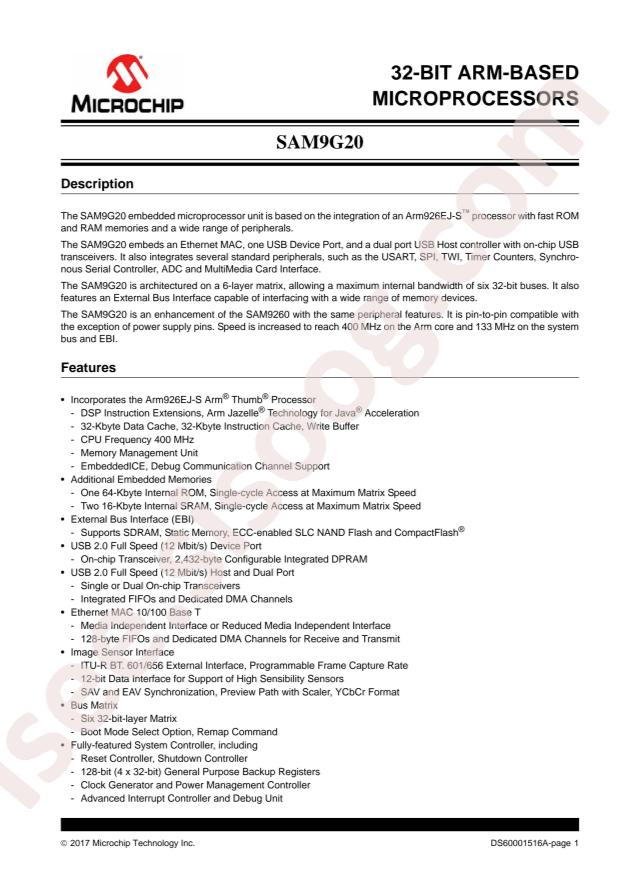

دانلود دیتاشیت SAM9G20	SAM9G20 Datasheet

RoHS: true
EEPROM: -
CPU Core: ARMOther series
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
RAM Size: -
Watchdog: -
ADC (Bit): -
DAC (Bit): -
Datasheet: Microchip Tech AT91SAM9G20B-CU-999
PWM (Bit): -
Real-Time Clock: -
CPU Maximum Speed: 400MHz
GPIO Ports Number: -
Low-Voltage Detect: -
CCP Capture/Compare: -
Internal Comparator: -
Internal Oscillator: -
Program Memory Type: -
Direct Memory Access: -
Program Storage Size: -
Universal Serial Bus: Yes
communication protocol: -
Operating Voltage Range: -
Infrared Data Association: -
Operating Temperature Range: -40°C~+85°C
Secure Digital Input and Output: -
Package: LFBGA-217
Manufacturer: Microchip Tech
Series: SAM9G
Packaging: Cut Tape (CT)
Part Status: Active
Core Processor: ARM926EJ-S
Number of Cores/Bus Width: 1 Core, 32-Bit
Speed: 400MHz
Co-Processors/DSP: -
RAM Controllers: SDRAM, SRAM
Graphics Acceleration: No
Display & Interface Controllers: -
Ethernet: 10/100Mbps
SATA: -
USB: USB 2.0 (2)
Voltage - I/O: 1.8V, 3.3V
Operating Temperature: -40°C ~ 85°C (TA)
Security Features: -
Package / Case: 217-LFBGA
Supplier Device Package: 217-LFBGA (15x15)
Additional Interfaces: EBI/EMI, I²C, MMC/SD/SDIO, SPI, SSC, UART/USART
Base Part Number: AT91SAM9G20
detail: ARM926EJ-S Microprocessor IC SAM9G 1 Core, 32-Bit 400MHz 217-LFBGA (15x15)
