AD22284-A-R2 Datasheet

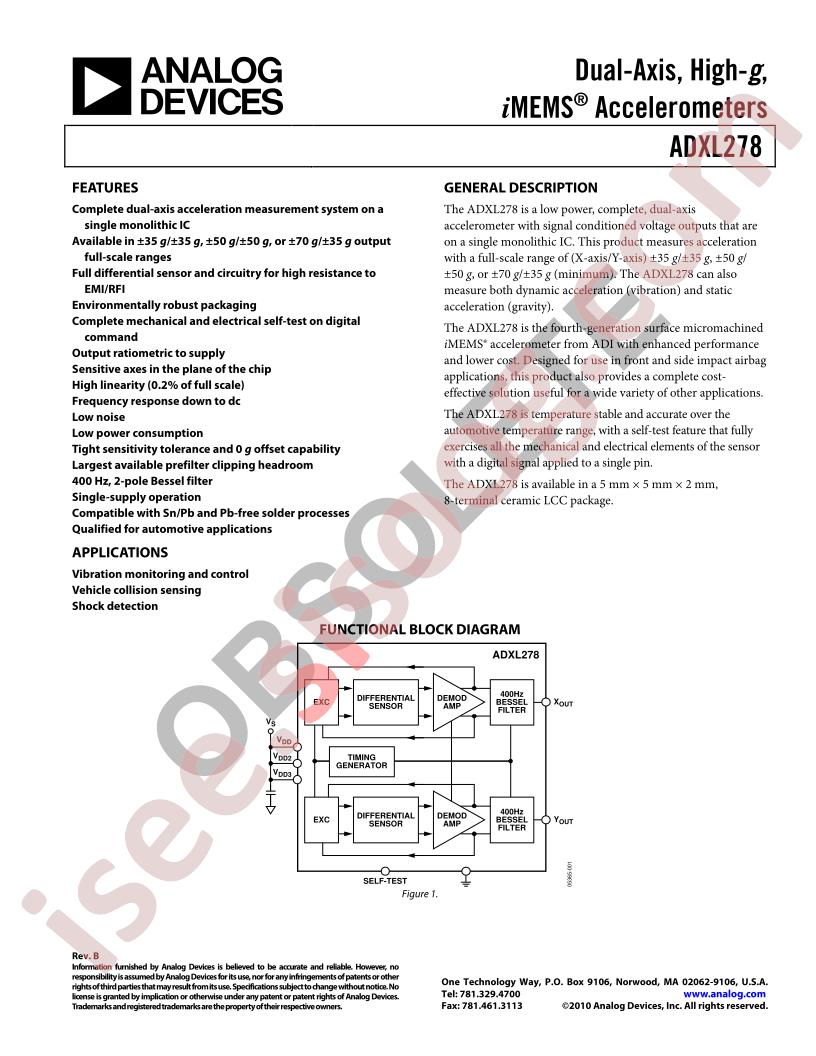

ADXL278

Datasheet specifications

Datasheet's name ADXL278
File size 715.639 KB
File type pdf
Number of pages 12

Download Datasheet ADXL278

Download Datasheet

Other documentations

No other documentation was found!

Technical specifications

  • Manufacturer: Analog Devices Inc.
  • Series: iMEMS®
  • Packaging: Cut Tape (CT)
  • Part Status: Obsolete
  • Type: Analog
  • Axis: X, Y
  • Acceleration Range: ±35g
  • Sensitivity (LSB/g): -
  • Sensitivity (mV/g): 55
  • Bandwidth: 400Hz
  • Output Type: Analog Voltage
  • Voltage - Supply: 4.75V ~ 5.25V
  • Features: -
  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 8-CLCC
  • Supplier Device Package: 8-CLCC (5x5)
  • Base Part Number: AD22284
  • detail: Accelerometer X, Y Axis ±35g 400Hz 8-CLCC (5x5)
