ADN2811ACPZ-CML Datasheet
Datasheet specifications

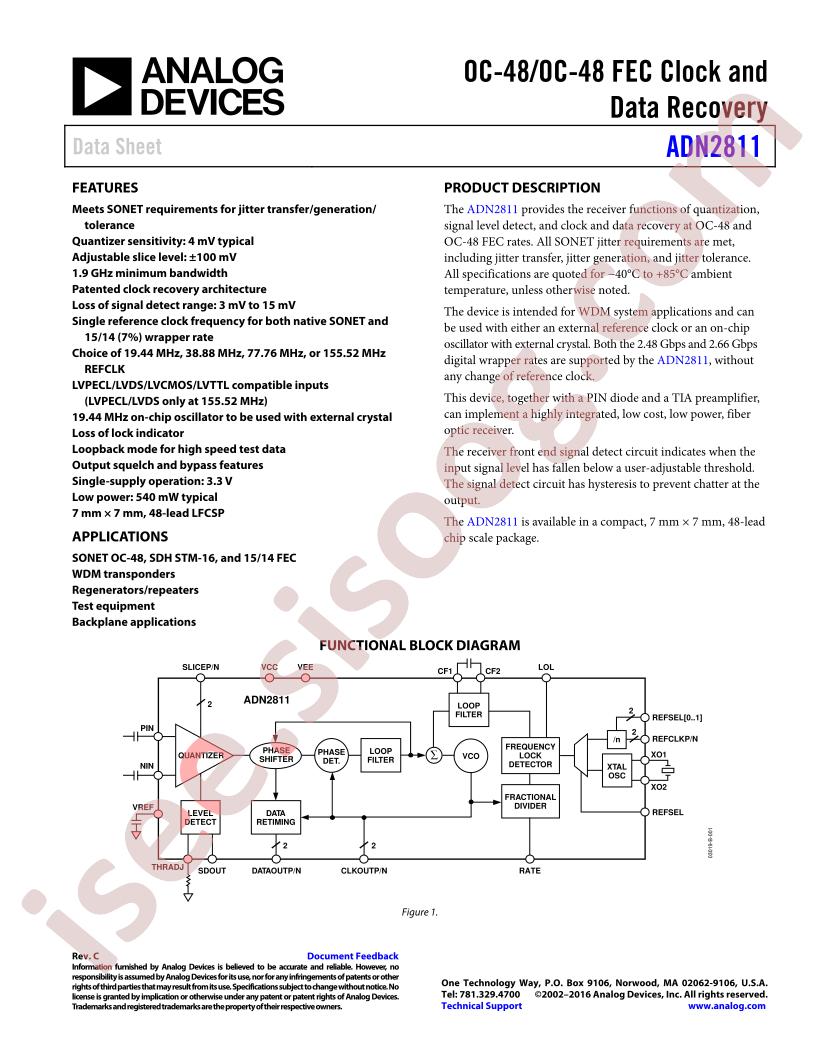

| Datasheet's name | ADN2811 |
|---|---|
| File size | 341.619 KB |
| File type | |
| Number of pages | 20 |
Download Datasheet ADN2811 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Tray
- Part Status: Obsolete
- PLL: Yes
- Main Purpose: SONET/SDH, STM
- Input: CML
- Output: CML
- Number of Circuits: 1
- Ratio - Input:Output: 1:2
- Differential - Input:Output: Yes/Yes
- Frequency - Max: 2.66GHz
- Voltage - Supply: 3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 48-VFQFN Exposed Pad, CSP
- Supplier Device Package: 48-LFCSP (7x7)
- Base Part Number: ADN2811
- detail: SONET/SDH, STM Clock and Data Recovery (CDR), Multiplexer IC 2.66GHz 1 Output 48-LFCSP (7x7)
