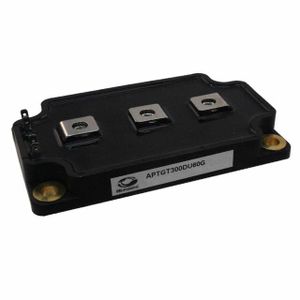

APTGT300DU60G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت APTGT300DU60G	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Tube
Part Status: Active
IGBT Type: Trench Field Stop
Configuration: Dual, Common Source
Voltage - Collector Emitter Breakdown (Max): 600V
Current - Collector (Ic) (Max): 430A
Power - Max: 1150W
Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 300A
Current - Collector Cutoff (Max): 350µA
Input Capacitance (Cies) @ Vce: 24nF @ 25V
Input: Standard
NTC Thermistor: No
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6
detail: IGBT Module Trench Field Stop Dual, Common Source 600V 430A 1150W Chassis Mount SP6
