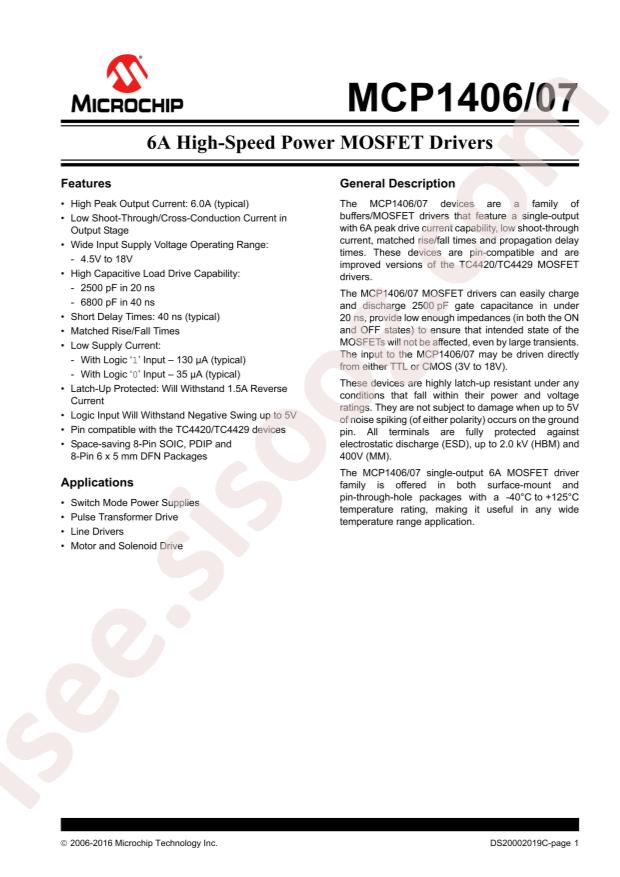

دیتاشیت MCP1406-E/P
مشخصات دیتاشیت
| نام دیتاشیت |
MCP1406,07
|
| حجم فایل |
965.757
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Microchip Tech MCP1406-E/P
-
Fall Time:
20ns
-
Load Type:
IGBT;MOSFET
-
Rise Time:
20ns
-
Supply Voltage:
4.5V~18V
-
Number of Drivers:
1
-
Driven Configuration:
Low Side
-
Operating Temperature:
-40°C~+125°C@(Ta)
-
Peak Output Current(sink):
6A
-
Peak Output Current(source):
6A
-
Package:
PDIP-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Channel Type:
Single
-
Gate Type:
IGBT, N-Channel, P-Channel MOSFET
-
Voltage - Supply:
4.5V ~ 18V
-
Logic Voltage - VIL, VIH:
0.8V, 2.4V
-
Current - Peak Output (Source, Sink):
6A, 6A
-
Input Type:
Inverting
-
Rise / Fall Time (Typ):
20ns, 20ns
-
Mounting Type:
Through Hole
-
Package / Case:
8-DIP (0.300", 7.62mm)
-
Supplier Device Package:
8-PDIP
-
Base Part Number:
MCP1406
-
detail:
Low-Side Gate Driver IC Inverting 8-PDIP
