دیتاشیت MTS2916A-HGC1

MTS2916A

مشخصات دیتاشیت

نام دیتاشیت MTS2916A
حجم فایل 377.555 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت MTS2916A

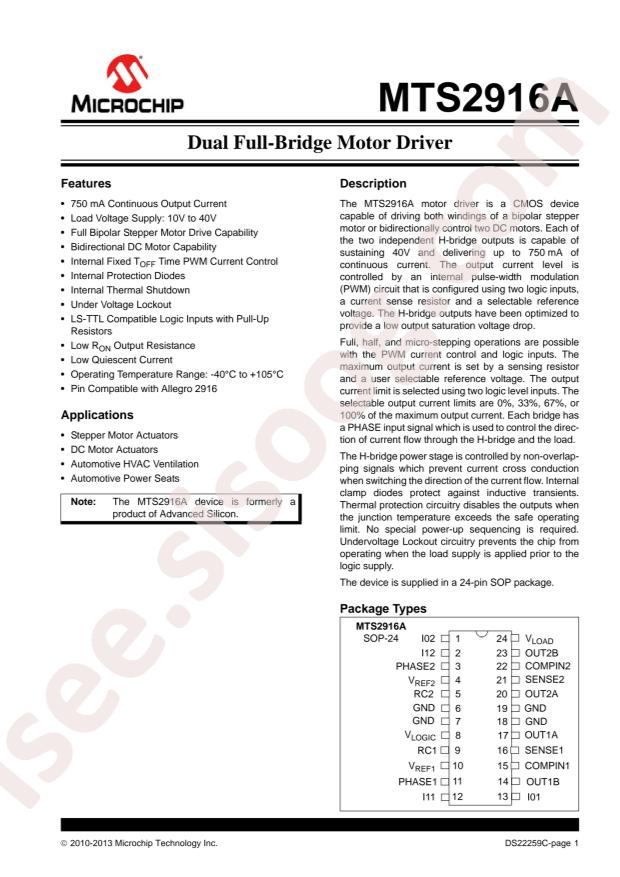

MTS2916A Datasheet

مشخصات

  • RoHS: true
  • Type: Brush DC Motor
  • Category: Power Supply Chip/Motor Driver ICs
  • Datasheet: Microchip Tech MTS2916A-HGC1
  • Interface: Parallel
  • Output Current: 750mA
  • Supply Voltage: 4.5V~5.5V
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: SOP-24-300mil
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Motor Type - Stepper: Bipolar
  • Motor Type - AC, DC: Brushed DC
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Technology: CMOS
  • Step Resolution: 1, 1/2
  • Applications: General Purpose
  • Current - Output: 750mA
  • Voltage - Supply: 4.5V ~ 5.5V
  • Voltage - Load: 10V ~ 40V
  • Mounting Type: Surface Mount
  • Package / Case: 24-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package: 24-SOP
  • Base Part Number: MTS2916A
  • detail: Bipolar Motor Driver CMOS Parallel 24-SOP
