MIC4129YME دیتاشیت

MIC4129YME

مشخصات دیتاشیت

نام دیتاشیت MIC4129YME
حجم فایل 93.84 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

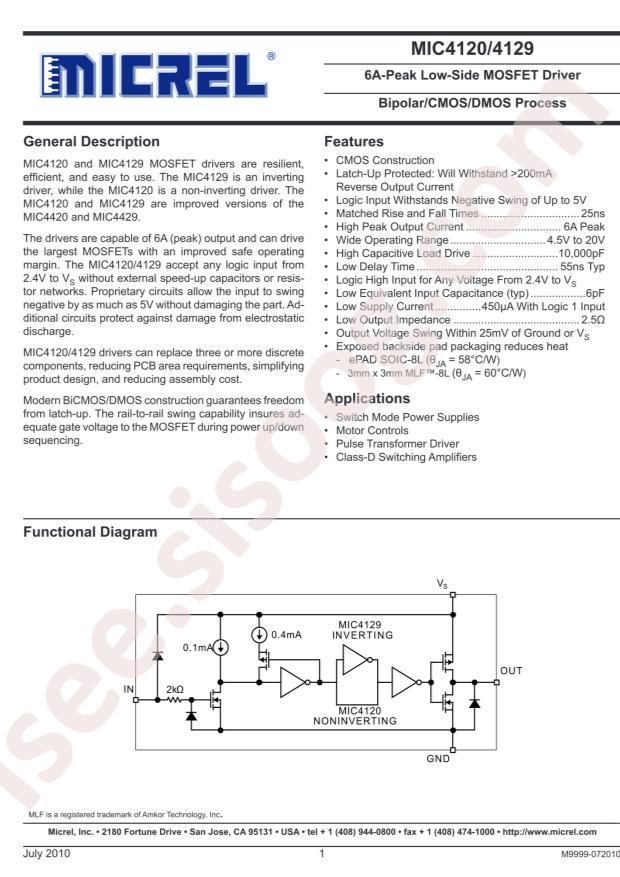

دانلود دیتاشیت MIC4129YME

دانلود دیتاشیت

سایر مستندات

MIC4120, MIC4129 10 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech MIC4129YME
  • Fall Time: 13ns
  • Load Type: MOSFET
  • Rise Time: 12ns
  • Supply Voltage: 4.5V~20V
  • Number of Drivers: 1
  • Driven Configuration: Low Side
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 6A
  • Peak Output Current(source): 6A
  • Package: SOIC-8-EP
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: N-Channel, P-Channel MOSFET
  • Voltage - Supply: 4.5V ~ 20V
  • Logic Voltage - VIL, VIH: 0.8V, 2.4V
  • Current - Peak Output (Source, Sink): 6A, 6A
  • Input Type: Inverting
  • Rise / Fall Time (Typ): 12ns, 13ns
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOIC-EP
  • Base Part Number: MIC4129
  • detail: Low-Side Gate Driver IC Inverting 8-SOIC-EP
