SSM2304CPZ-REEL7 Datasheet
Datasheet specifications

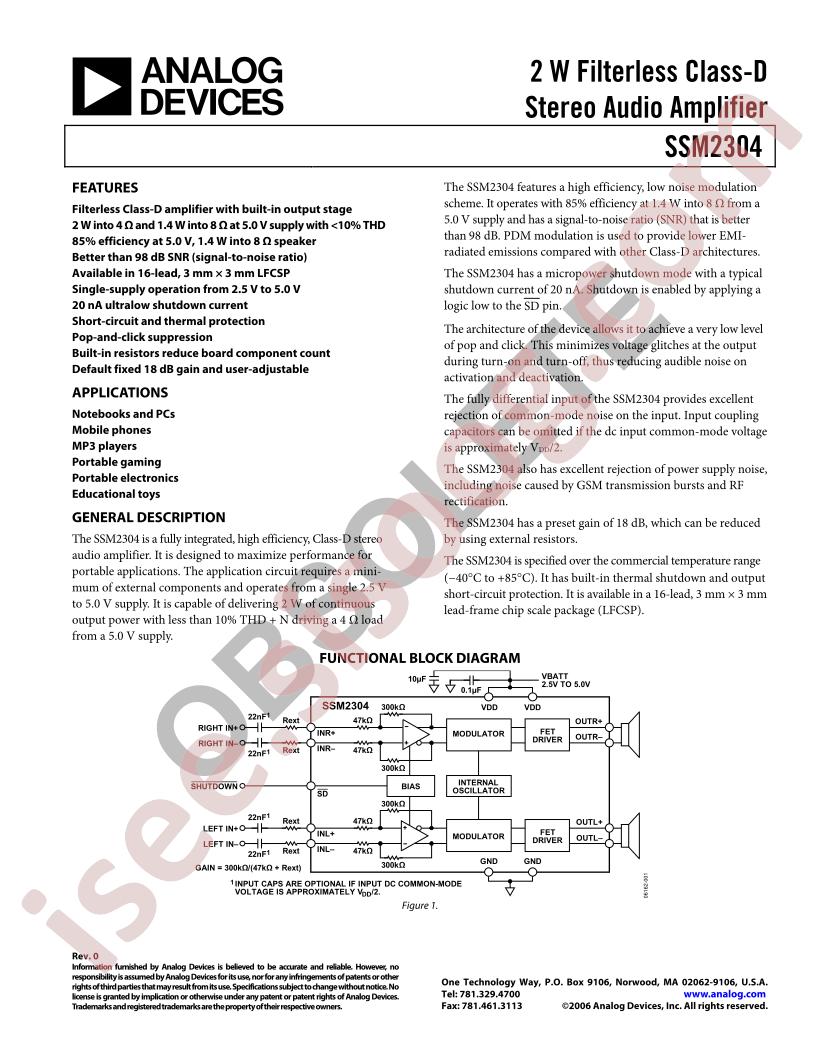

| Datasheet's name | SSM2304 |
|---|---|
| File size | 2062.663 KB |
| File type | |
| Number of pages | 20 |
Download Datasheet SSM2304 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Type: Class D
- Output Type: 2-Channel (Stereo)
- Max Output Power x Channels @ Load: 2.4W x 2 @ 4Ohm
- Voltage - Supply: 2.5V ~ 5V
- Features: Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 85°C (TA)
- Supplier Device Package: 16-LFCSP-VQ (3x3)
- Package / Case: 16-VFQFN Exposed Pad, CSP
- Base Part Number: SSM2304
- detail: Amplifier IC 2-Channel (Stereo) Class D 16-LFCSP-VQ (3x3)
