دیتاشیت DAC7734EB/1KG4

DAC7734

مشخصات دیتاشیت

نام دیتاشیت DAC7734
حجم فایل 1593.164 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

دانلود دیتاشیت DAC7734

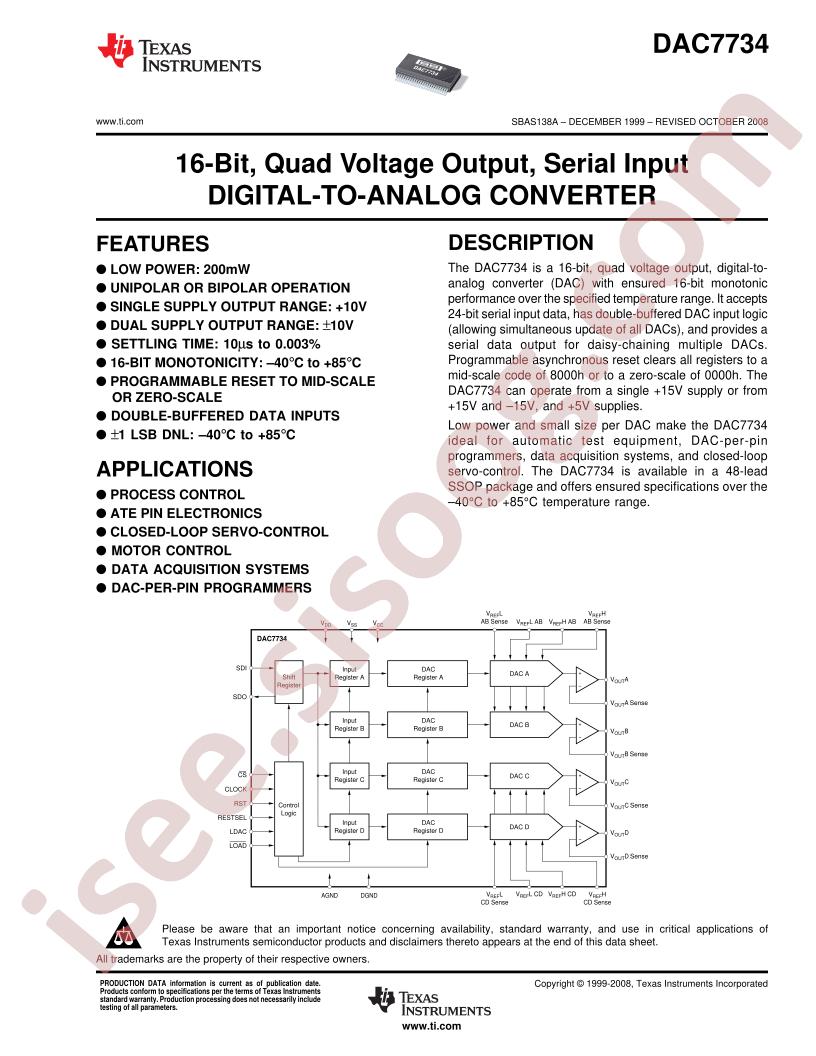

DAC7734 Datasheet

مشخصات

  • Part Status: Obsolete
  • Output Type: Voltage - Buffered
  • Reference Type: External
  • Operating Temperature: -40°C ~ 85°C
  • Differential Output: No
  • INL/DNL (LSB): ±4 (Max), ±2 (Max)
  • Packaging: Tape & Reel (TR)
  • Series: -
  • Supplier Device Package: 48-SSOP
  • Number of Bits: 16
  • Voltage - Supply, Analog: ±14.25V ~ 15.75V
  • Manufacturer: Texas Instruments
  • Package / Case: 48-BSSOP (0.295", 7.50mm Width)
  • Number of D/A Converters: 4
  • Voltage - Supply, Digital: 5V
  • Mounting Type: Surface Mount
  • Settling Time: 11µs
  • Data Interface: SPI
  • Architecture: R-2R
  • Base Part Number: DAC7734
  • detail: 16 Bit Digital to Analog Converter 4 48-SSOP
