دیتاشیت SN74ALS652A-1DWRG4
مشخصات دیتاشیت
نام دیتاشیت | SN54/74(ALS,AS)65x |
---|---|
حجم فایل | 1067.425 کیلوبایت |
نوع فایل | |
تعداد صفحات | 30 |
دانلود دیتاشیت SN54/74(ALS,AS)65x |

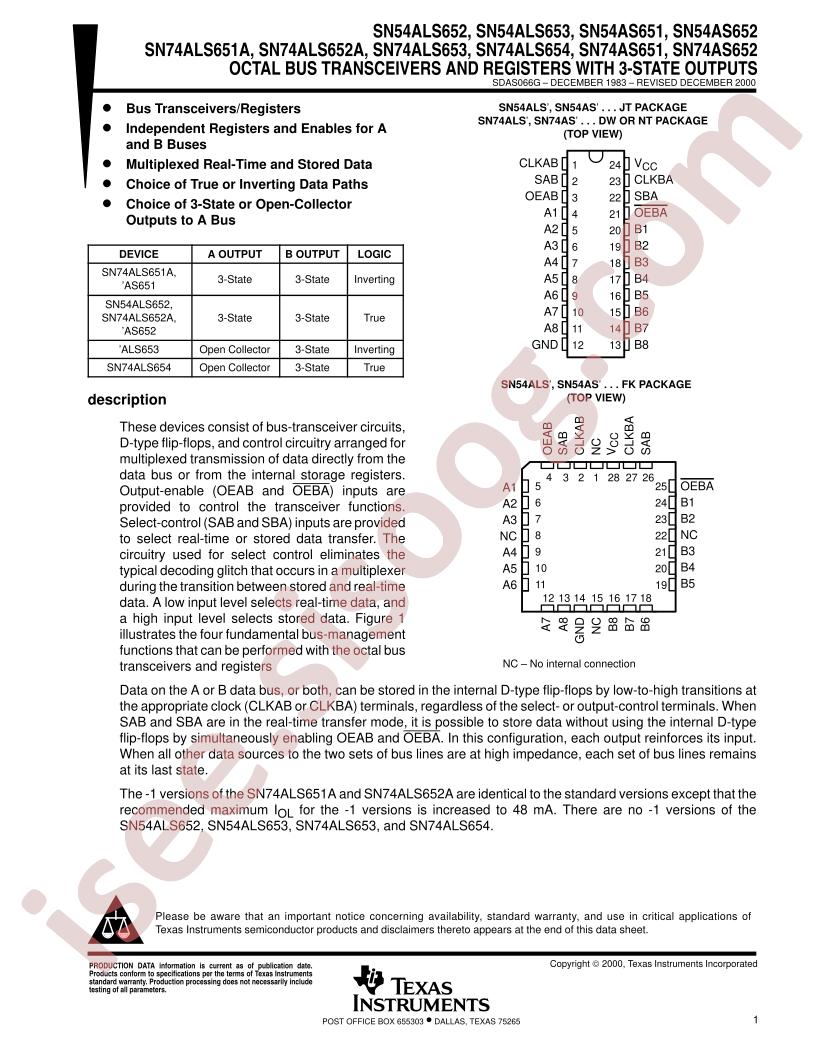

SN54/74(ALS,AS)65x Datasheet |
---|
مشخصات
- Part Status: Obsolete
- Output Type: 3-State
- Voltage - Supply: 4.5V ~ 5.5V
- Operating Temperature: 0°C ~ 70°C (TA)
- Packaging: Tape & Reel (TR)
- Series: 74ALS
- Number of Elements: 1
- Number of Bits per Element: 8
- Current - Output High, Low: 15mA, 24mA
- Manufacturer: Texas Instruments
- Logic Type: Transceiver, Non-Inverting
- Mounting Type: Surface Mount
- Package / Case: 24-SOIC (0.295", 7.50mm Width)
- Input Type: -
- Supplier Device Package: 24-SOIC
- Base Part Number: SN74ALS6
- detail: Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 24-SOIC
