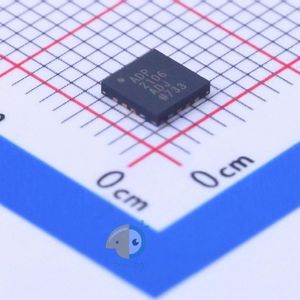

دیتاشیت ADP2106ACPZ-1.8-R7
مشخصات دیتاشیت
| نام دیتاشیت | ADP2105-07 |
|---|---|
| حجم فایل | 1023.596 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 36 |
دانلود دیتاشیت ADP2105-07 |
ADP2105-07 Datasheet |
|---|
مشخصات
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Obsolete
- Function: Step-Down
- Output Configuration: Positive
- Topology: Buck
- Output Type: Fixed
- Number of Outputs: 1
- Voltage - Input (Min): 2.7V
- Voltage - Input (Max): 5.5V
- Voltage - Output (Min/Fixed): 1.8V
- Voltage - Output (Max): -
- Current - Output: 1.5A
- Frequency - Switching: 1.2MHz
- Synchronous Rectifier: Yes
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 16-VQFN Exposed Pad, CSP
- Supplier Device Package: 16-LFCSP-VQ (4x4)
- Base Part Number: ADP2106
- detail: Buck Switching Regulator IC Positive Fixed 1.8V 1 Output 1.5A 16-VQFN Exposed Pad, CSP
