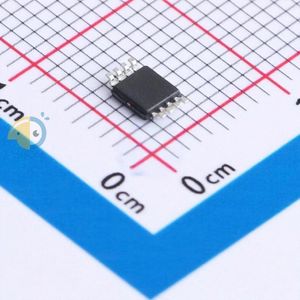

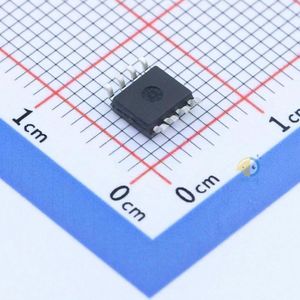

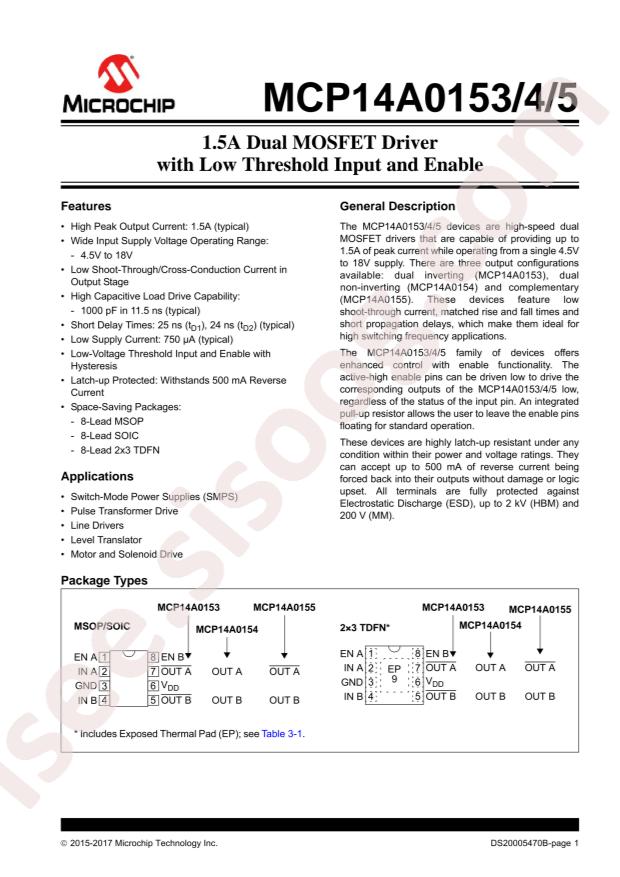

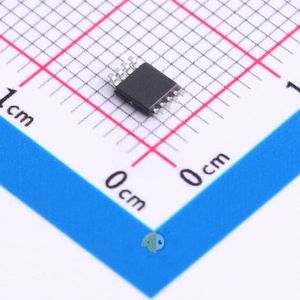

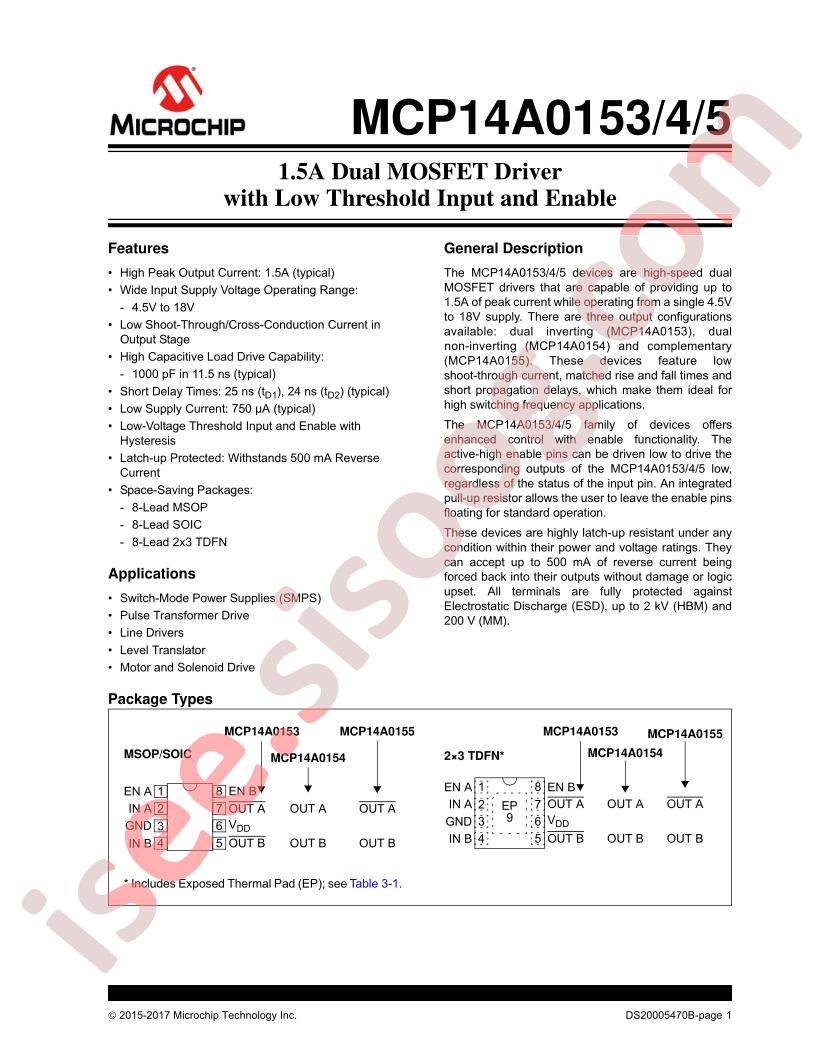

دیتاشیت MCP14A0155-E/MS
مشخصات دیتاشیت
| نام دیتاشیت |
MCP14A0153/4/5
|
| حجم فایل |
855.306
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
30
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Gate Drive ICs
-
Datasheet:
Microchip Tech MCP14A0155-E/MS
-
Fall Time:
10ns
-
Load Type:
MOSFET
-
Rise Time:
11.5ns
-
Supply Voltage:
4.5V~18V
-
Number of Drivers:
2
-
Driven Configuration:
Low Side
-
Operating Temperature:
-40°C~+150°C@(Tj)
-
Peak Output Current(sink):
1.5A
-
Peak Output Current(source):
1.5A
-
Package:
MSOP-8
-
Manufacturer:
Microchip Tech
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Channel Type:
Independent
-
Gate Type:
N-Channel, P-Channel MOSFET
-
Voltage - Supply:
4.5V ~ 18V
-
Logic Voltage - VIL, VIH:
0.8V, 2V
-
Current - Peak Output (Source, Sink):
1.5A, 1.5A
-
Input Type:
Inverting, Non-Inverting
-
Rise / Fall Time (Typ):
11.5ns, 10ns
-
Mounting Type:
Surface Mount
-
Package / Case:
8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
-
Supplier Device Package:
8-MSOP
-
Base Part Number:
MCP14A0155
-
detail:
Low-Side Gate Driver IC Inverting, Non-Inverting 8-MSOP
