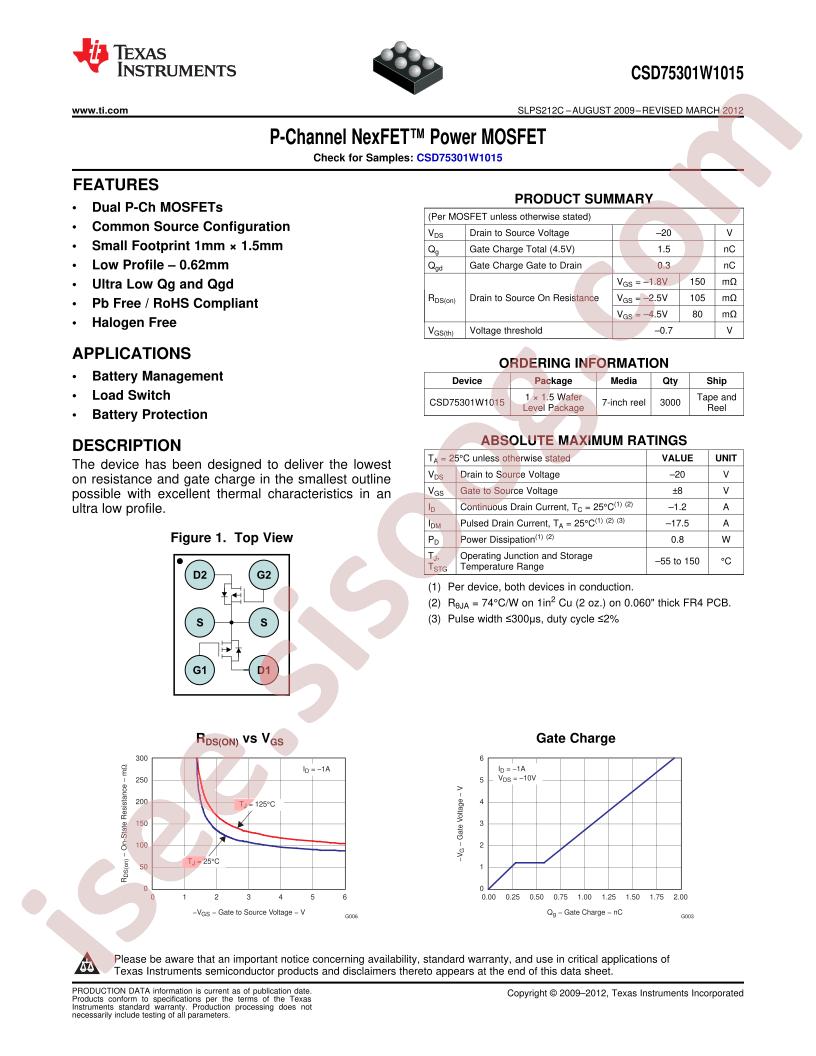

CSD75301W1015 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
CSD75301W1015
|
|
حجم فایل
|
151.336
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
Part Status:
Obsolete
-
Drain to Source Voltage (Vdss):
20V
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Input Capacitance (Ciss) (Max) @ Vds:
195pF @ 10V
-
Vgs(th) (Max) @ Id:
1V @ 250µA
-
Packaging:
Cut Tape (CT)
-
Series:
NexFET™
-
Current - Continuous Drain (Id) @ 25°C:
1.2A
-
FET Type:
2 P-Channel (Dual)
-
Rds On (Max) @ Id, Vgs:
100mOhm @ 1A, 4.5V
-
Power - Max:
800mW
-
FET Feature:
Logic Level Gate
-
Manufacturer:
Texas Instruments
-
Gate Charge (Qg) (Max) @ Vgs:
2.1nC @ 4.5V
-
Mounting Type:
Surface Mount
-
Package / Case:
6-UFBGA, DSBGA
-
Supplier Device Package:
6-DSBGA (1x1.5)
-
Base Part Number:
CSD75301
-
detail:
Mosfet Array 2 P-Channel (Dual) 20V 1.2A 800mW Surface Mount 6-DSBGA (1x1.5)
