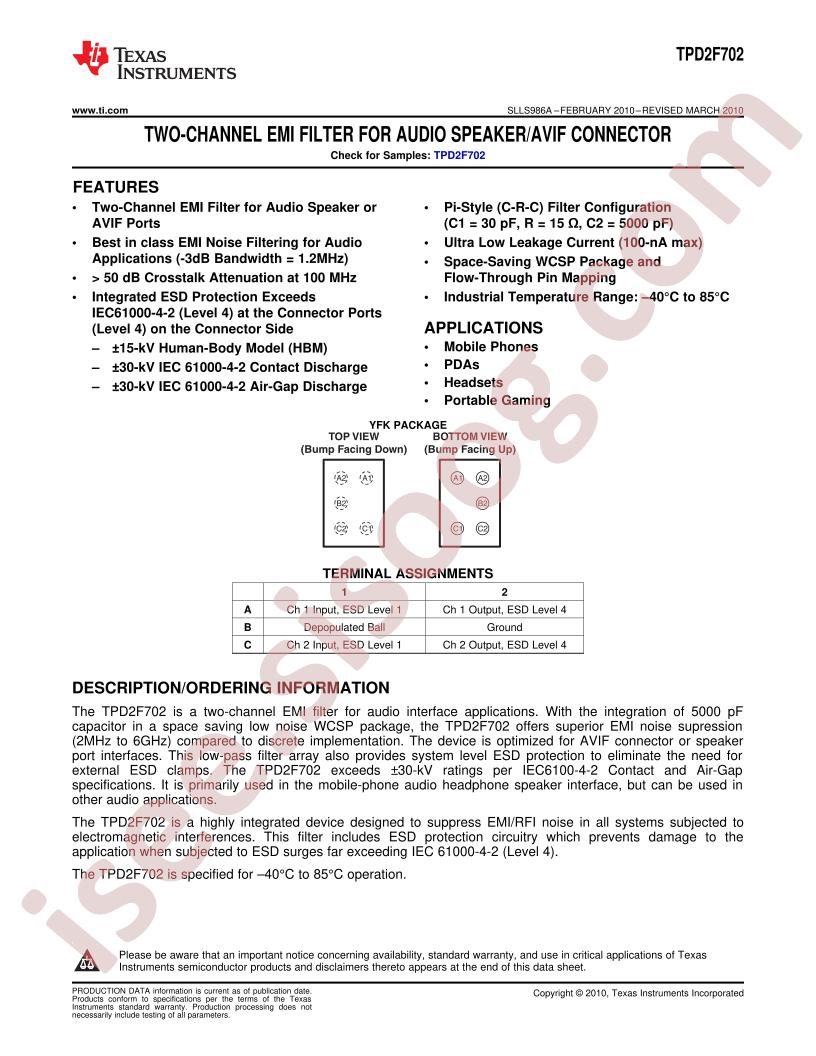

TPD2F702YFKR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TPD2F702
|
|
حجم فایل
|
782.42
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
Center / Cutoff Frequency:
1.2MHz (Cutoff)
-
Filter Order:
2nd
-
Size / Dimension:
0.036" L x 0.052" W (0.91mm x 1.31mm)
-
Voltage - Rated:
-
-
Base Part Number:
TPD2F
-
Number of Channels:
2
-
Type:
Low Pass
-
Package / Case:
5-UFBGA, DSBGA
-
Height:
0.025" (0.64mm)
-
Values:
R = 15Ohms, C = 5000pF
-
ESD Protection:
Yes
-
Part Status:
Obsolete
-
Resistance - Channel (Ohms):
15
-
Series:
TPD
-
Manufacturer:
Texas Instruments
-
Mounting Type:
Surface Mount
-
Attenuation Value:
50dB @ 100MHz
-
Applications:
Audio
-
Packaging:
Cut Tape (CT)
-
Technology:
RC (Pi)
-
Operating Temperature:
-40°C ~ 85°C
-
detail:
RC (Pi) EMI Filter 2nd Order Low Pass 2 Channel R = 15Ohms, C = 5000pF 5-UFBGA, DSBGA
