ADP2302,03 Datasheet
Datasheet specifications
| Datasheet's name | ADP2302,03 |
|---|---|
| File size | 1000.634 KB |
| File type | |
| Number of pages | 28 |
Download Datasheet ADP2302,03 |
Download Datasheet |
|---|
Other documentations

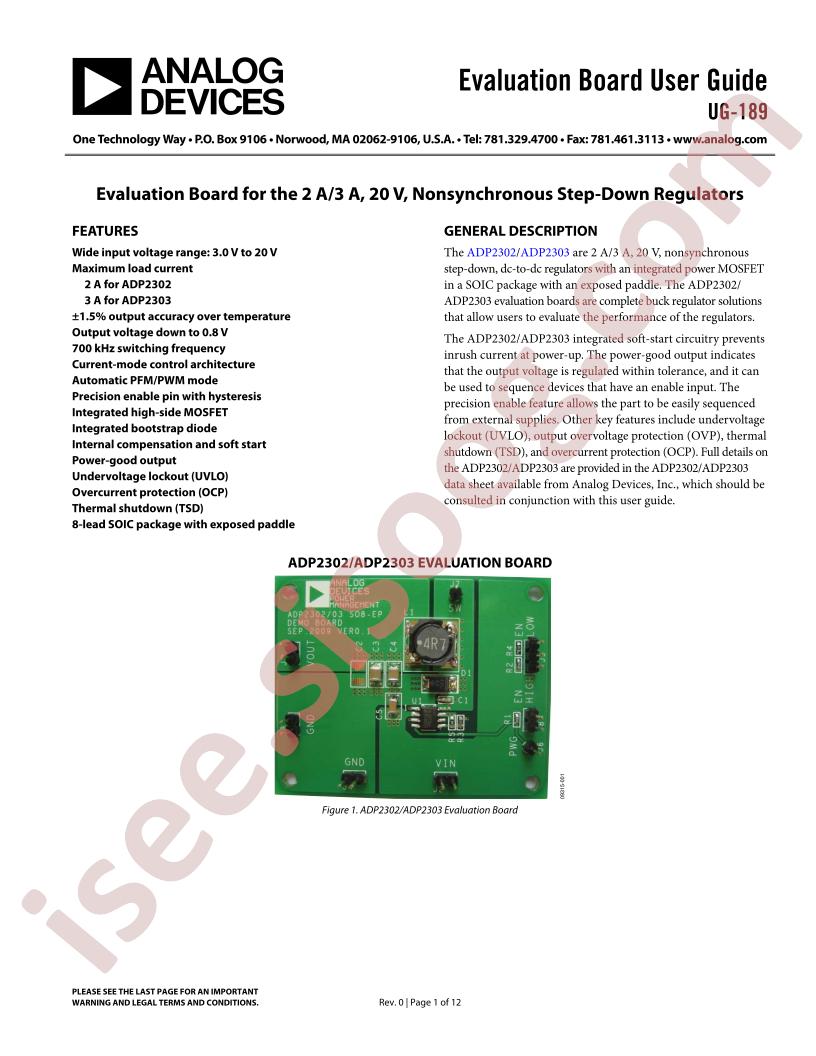

ADP2302,03 Eval Board 12 pages
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: -
- Part Status: Obsolete
- Main Purpose: DC/DC, Step Down
- Outputs and Type: 1, Non-Isolated
- Voltage - Output: 3.3V
- Current - Output: 3A
- Voltage - Input: 3V ~ 20V
- Regulator Topology: Buck
- Frequency - Switching: 700kHz
- Board Type: Fully Populated
- Supplied Contents: Board(s)
- Utilized IC / Part: ADP2303
- Base Part Number: ADP2303

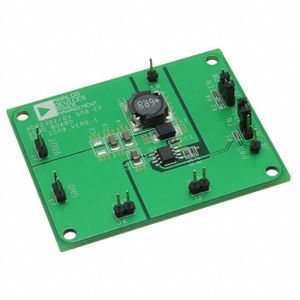

- detail: ADP2303 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
