دیتاشیت MCP1703A-1802E/DB

MCP1703A Datasheet

مشخصات دیتاشیت

نام دیتاشیت MCP1703A Datasheet
حجم فایل 2345.786 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

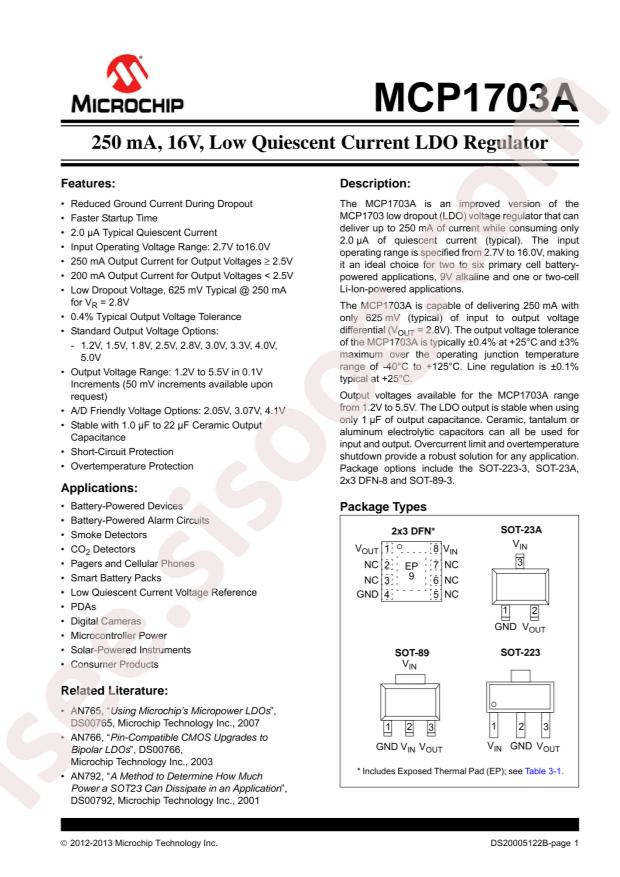

دانلود دیتاشیت MCP1703A Datasheet

MCP1703A Datasheet Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 16V
  • Voltage - Output (Min/Fixed): 1.8V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): -
  • Current - Output: 200mA
  • Current - Quiescent (Iq): 5µA
  • PSRR: 35dB (100Hz)
  • Control Features: -
  • Protection Features: Over Current, Over Temperature, Short Circuit
  • Operating Temperature: -40°C ~ 125°C
  • Mounting Type: Surface Mount
  • Package / Case: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-223-3
  • Base Part Number: MCP1703
  • detail: Linear Voltage Regulator IC 1 Output 200mA SOT-223-3
