Analog and Interface Product Guide Datasheet

Analog and Interface Product Guide

Datasheet specifications

Datasheet's name Analog and Interface Product Guide
File size 4947.971 KB
File type pdf
Number of pages 76

Download Datasheet Analog and Interface Product Guide

Download Datasheet

Other documentations

MCP6566/6R/6U/7/9 50 pages

MCP6567T-E/SN 50 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Microchip Tech MCP6569-E/SL
  • Output Type: CMOS;Open Drain
  • Supply Voltage: 1.8V~5.5V
  • Operating Temperature: -40°C~+125°C
  • Input Bias Current (Ib): 1pA
  • Input Offset Voltage (Vos): 10mV
  • Input Hysteresis Voltage (Vhys): 5mV
  • Common Mode Rejection Ratio (CMRR): 66dB

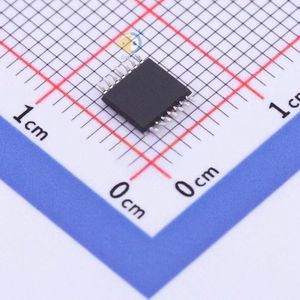

  • Package: SOP-14
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Type: General Purpose
  • Number of Elements: 4
  • Voltage - Supply, Single/Dual (±): 1.8V ~ 5.5V
  • Voltage - Input Offset (Max): 10mV @ 5.5V
  • Current - Input Bias (Max): 1pA @ 5.5V
  • Current - Output (Typ): 50mA
  • Current - Quiescent (Max): 130µA
  • CMRR, PSRR (Typ): 66dB CMRR, 70dB PSRR
  • Propagation Delay (Max): 80ns
  • Hysteresis: 5mV
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 14-SOIC
  • Base Part Number: MCP6569
  • detail: Comparator General Purpose CMOS, Open-Drain 14-SOIC
