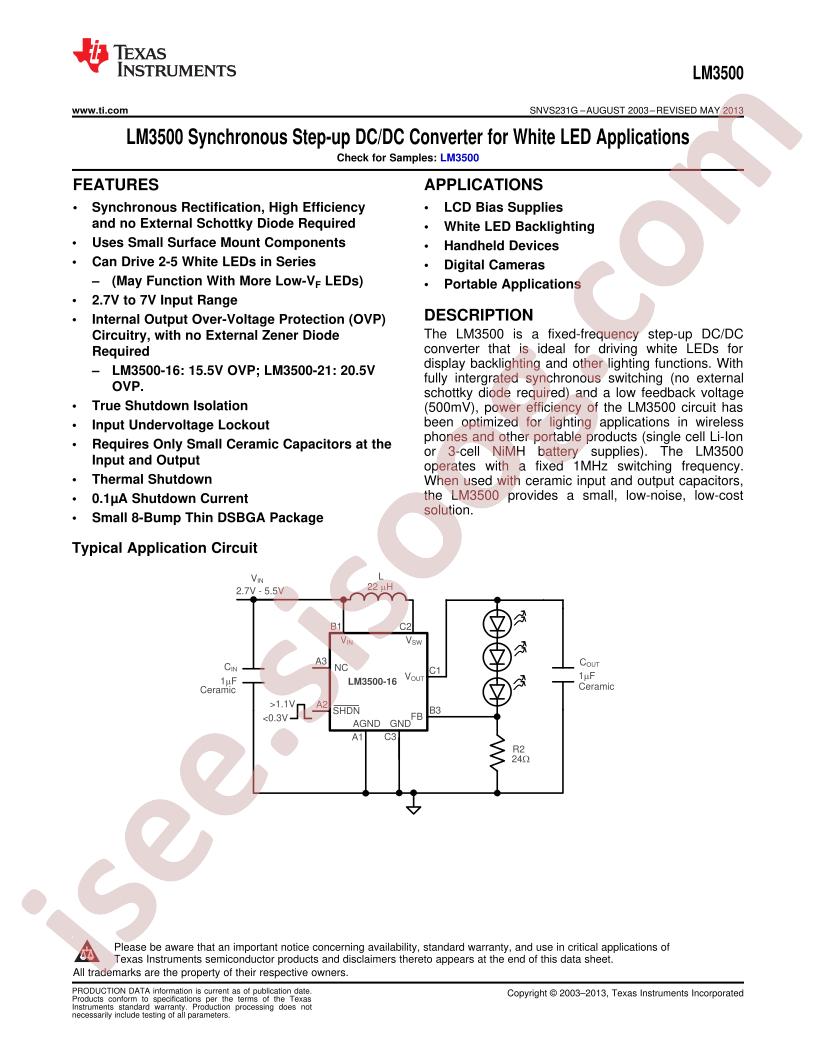

LM3500 Datasheet
Datasheet specifications
| Datasheet's name | LM3500 |
|---|---|
| File size | 908.094 KB |
| File type | |
| Number of pages | 24 |
Download Datasheet LM3500 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Frequency: 1MHz
- Dimming: -
- Internal Switch(s): Yes
- Topology: Step-Up (Boost)
- Voltage - Output: 16V
- Base Part Number: LM3500
- Type: DC DC Regulator
- Package / Case: 8-WFBGA
- Supplier Device Package: 8-uSMD
- Mounting Type: Surface Mount
- Part Status: Obsolete
- Voltage - Supply (Max): 7V
- Number of Outputs: 1
- Voltage - Supply (Min): 2.7V
- Manufacturer: Texas Instruments
- Current - Output / Channel: 400mA (Switch)
- Series: -
- Packaging: Cut Tape (CT)
- Operating Temperature: -40°C ~ 85°C (TA)
- Applications: Backlight
- detail: LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) Dimming 400mA (Switch) 8-uSMD
