دیتاشیت AD5666SRU-EP-2RL7
مشخصات دیتاشیت
نام دیتاشیت | AD5666-EP |
---|---|
حجم فایل | 1005.846 کیلوبایت |
نوع فایل | |
تعداد صفحات | 16 |

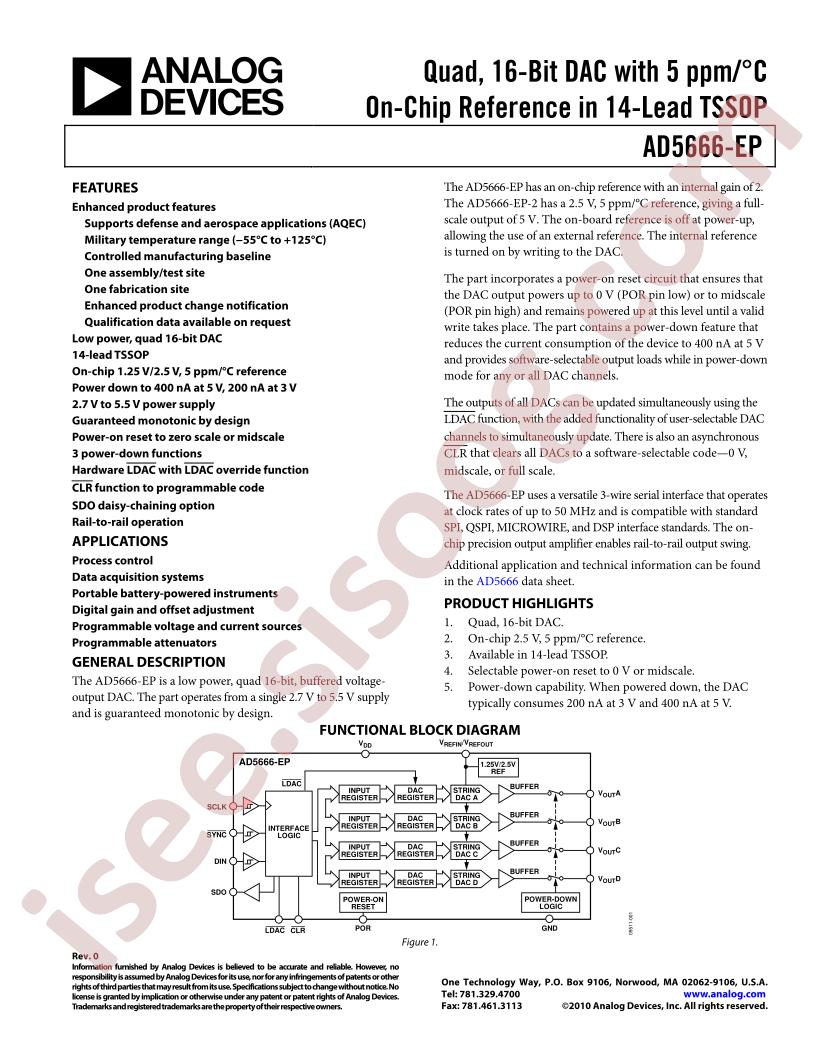

دانلود دیتاشیت AD5666-EP |
AD5666-EP Datasheet |
---|
مشخصات
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Number of Bits: 16
- Number of D/A Converters: 4
- Settling Time: 10µs
- Output Type: Voltage - Buffered
- Differential Output: No
- Data Interface: SPI, DSP
- Reference Type: External, Internal
- Voltage - Supply, Analog: 2.7V ~ 5.5V
- Voltage - Supply, Digital: 2.7V ~ 5.5V
- INL/DNL (LSB): ±21 (Max), ±1 (Max)
- Architecture: String DAC
- Operating Temperature: -55°C ~ 125°C
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package: 14-TSSOP
- Mounting Type: Surface Mount
- Base Part Number: AD5666
- detail: 16 Bit Digital to Analog Converter 4 14-TSSOP
