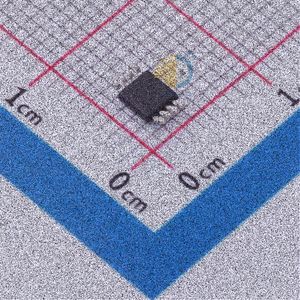

دیتاشیت MCP4811-E/MC

MCP4801/11/21

مشخصات دیتاشیت

نام دیتاشیت MCP4801/11/21
حجم فایل 1287.09 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

دانلود دیتاشیت MCP4801/11/21

MCP4801/11/21 Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 10
  • Number of D/A Converters: 1
  • Settling Time: 4.5µs (Typ)
  • Output Type: Voltage - Buffered
  • Differential Output: No
  • Data Interface: SPI
  • Reference Type: Internal
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • INL/DNL (LSB): ±1, ±0.2
  • Architecture: String DAC
  • Operating Temperature: -40°C ~ 125°C
  • Package / Case: 8-VFDFN Exposed Pad
  • Supplier Device Package: 8-DFN (2x3)
  • Mounting Type: Surface Mount
  • Base Part Number: MCP4811
  • detail: 10 Bit Digital to Analog Converter 1 8-DFN (2x3)
