دیتاشیت MCP3304-BI/SL

MCP3302, 04 Series

مشخصات دیتاشیت

نام دیتاشیت MCP3302, 04 Series
حجم فایل 1286.52 کیلوبایت
نوع فایل pdf
تعداد صفحات 48

دانلود دیتاشیت MCP3302, 04 Series

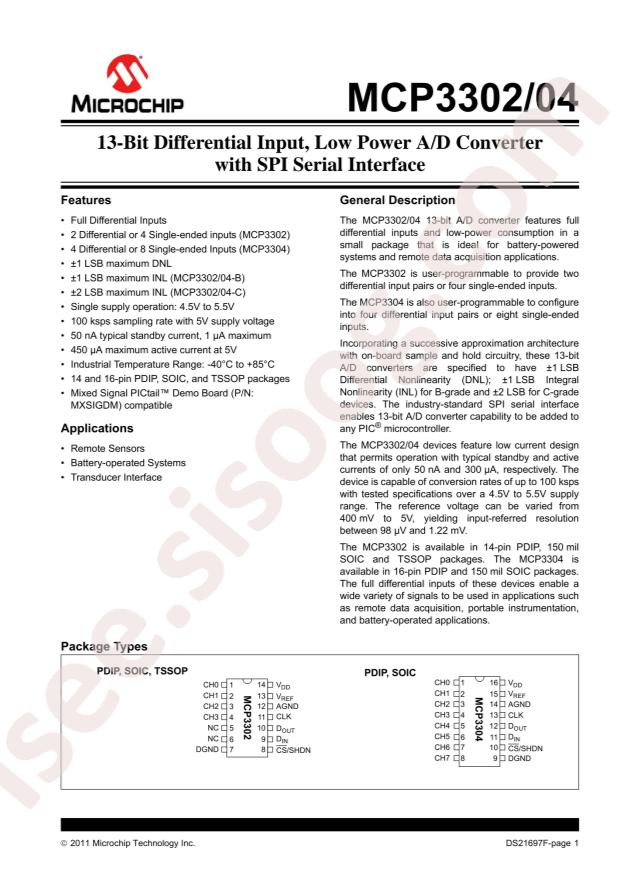

MCP3302, 04 Series Datasheet

مشخصات

  • Manufacturer: Microchip Technology
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Number of Bits: 13
  • Sampling Rate (Per Second): 100k
  • Number of Inputs: 4, 8
  • Input Type: Differential, Single Ended
  • Data Interface: SPI
  • Configuration: MUX-S/H-ADC
  • Ratio - S/H:ADC: 1:1
  • Number of A/D Converters: 1
  • Architecture: SAR
  • Reference Type: External
  • Voltage - Supply, Analog: 5V
  • Voltage - Supply, Digital: 5V
  • Features: -
  • Operating Temperature: -40°C ~ 85°C
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: MCP3304
  • detail: 13 Bit Analog to Digital Converter 4, 8 Input 1 SAR 16-SOIC
