MIC5280YME دیتاشیت

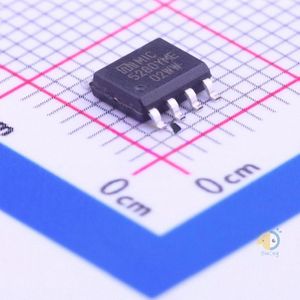

MIC5280YME

مشخصات دیتاشیت

نام دیتاشیت MIC5280YME
حجم فایل 85.043 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

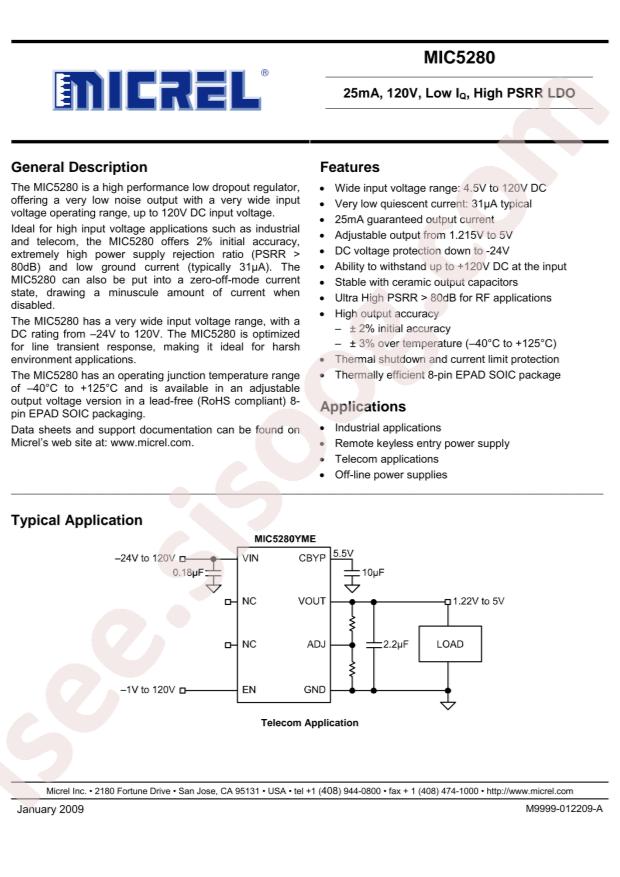

مشاهده دیتاشیت MIC5280YME

دانلود دیتاشیت

سایر مستندات

MIC5280 14 pages

مشخصات فنی

  • RoHS: true
  • Feature: Overcurrent Protection;Thermal Protection
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Microchip Tech MIC5280YME
  • Output Type: Adjustable
  • Output Current: 25mA
  • Output Voltage: 1.22V~5V
  • Dropout Voltage: 1.5V@(25mA)
  • Output Polarity: Positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 120V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 50uA
  • Power Supply Rejection Ratio (PSRR): 80dB@(1kHz)
  • Package: SOIC-8-EP
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Configuration: Positive
  • Number of Regulators: 1
  • Voltage - Input (Max): 120V
  • Voltage - Output (Min/Fixed): 1.22V
  • Voltage - Output (Max): 5V
  • Voltage Dropout (Max): 1.5V @ 25mA
  • Current - Output: 25mA
  • Current - Quiescent (Iq): 50µA
  • Current - Supply (Max): 400µA
  • PSRR: 80dB (1kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOIC-EP
  • Base Part Number: MIC5280
  • detail: Linear Voltage Regulator IC 1 Output 25mA 8-SOIC-EP
