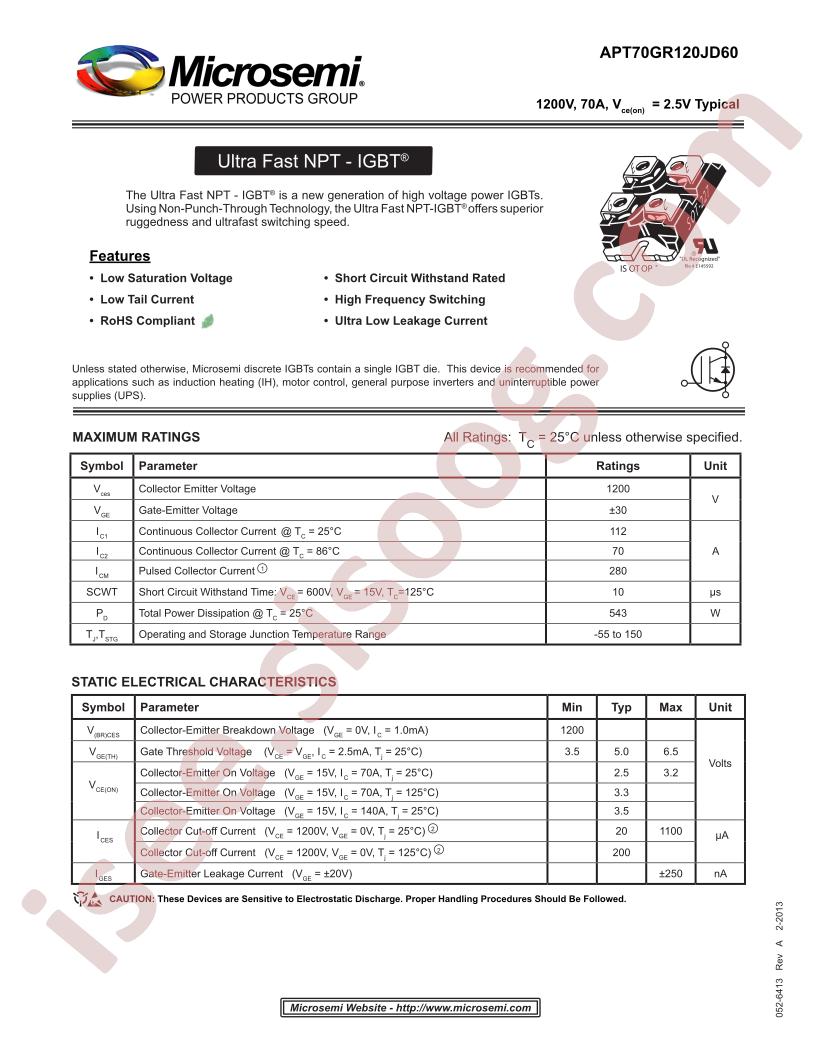

APT70GR120JD60 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
APT70GR120JD60
|
|
حجم فایل
|
995.445
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
8
|
مشخصات فنی
-
Manufacturer:
Microchip Technology
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
IGBT Type:
NPT
-
Configuration:
Single
-
Voltage - Collector Emitter Breakdown (Max):
1200V
-
Current - Collector (Ic) (Max):
112A
-
Power - Max:
543W
-
Vce(on) (Max) @ Vge, Ic:
3.2V @ 15V, 70A
-
Current - Collector Cutoff (Max):
1.1mA
-
Input Capacitance (Cies) @ Vce:
7.26nF @ 25V
-
Input:
Standard
-
NTC Thermistor:
No
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Chassis Mount
-
Package / Case:
SOT-227-4
-
Supplier Device Package:
SOT-227
-
detail:
IGBT Module NPT Single 1200V 112A 543W Chassis Mount SOT-227
