APTGT200TL60G دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت APTGT200TL60G	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
IGBT Type: Trench Field Stop
Configuration: Three Level Inverter
Voltage - Collector Emitter Breakdown (Max): 600V
Current - Collector (Ic) (Max): 300A
Power - Max: 652W
Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 200A
Current - Collector Cutoff (Max): 350µA
Input Capacitance (Cies) @ Vce: 12.2nF @ 25V
Input: Standard
NTC Thermistor: No
Operating Temperature: -40°C ~ 175°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6

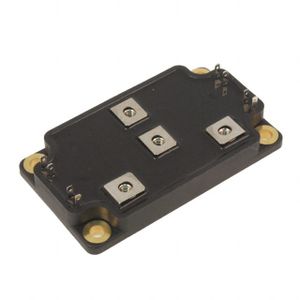

detail: IGBT Module Trench Field Stop Three Level Inverter 600V 300A 652W Chassis Mount SP6
