APTM20AM04FG دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت APTM20AM04FG	دانلود دیتاشیت

Manufacturer: Microchip Technology
Series: -
Packaging: Bulk
Part Status: Active
FET Type: 2 N-Channel (Half Bridge)
FET Feature: Standard
Drain to Source Voltage (Vdss): 200V
Current - Continuous Drain (Id) @ 25°C: 372A
Rds On (Max) @ Id, Vgs: 5mOhm @ 186A, 10V
Vgs(th) (Max) @ Id: 5V @ 10mA
Gate Charge (Qg) (Max) @ Vgs: 560nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 28900pF @ 25V
Power - Max: 1250W
Operating Temperature: -40°C ~ 150°C (TJ)
Mounting Type: Chassis Mount
Package / Case: SP6
Supplier Device Package: SP6

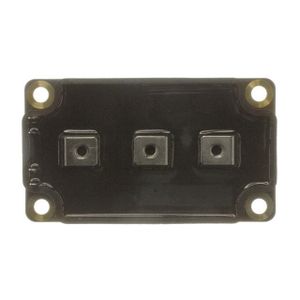

detail: Mosfet Array 2 N-Channel (Half Bridge) 200V 372A 1250W Chassis Mount SP6
