AD8694WAC-P3 Datasheet
Datasheet specifications

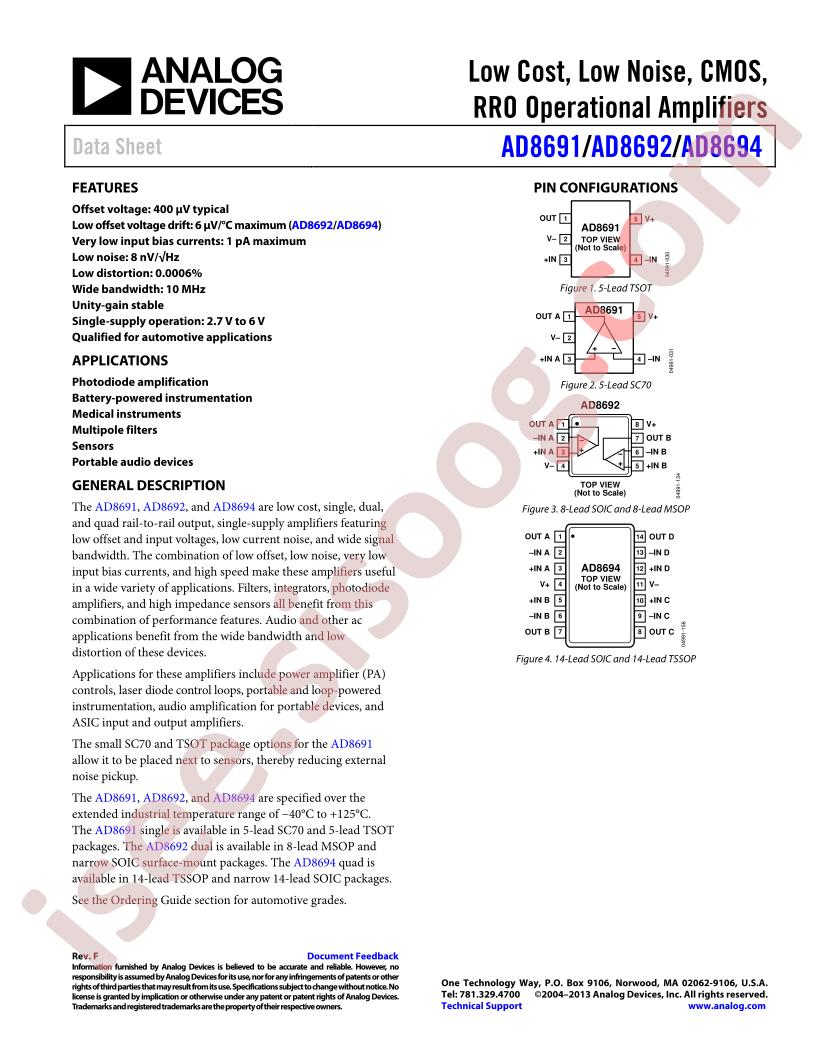

| Datasheet's name | AD8691,92,94 |
|---|---|
| File size | 316.754 KB |
| File type | |
| Number of pages | 16 |
Download Datasheet AD8691,92,94 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: Analog Devices Inc.
- Series: -
- Packaging: Bulk
- Part Status: Obsolete
- Amplifier Type: General Purpose
- Number of Circuits: 4
- Output Type: Rail-to-Rail
- Slew Rate: 5V/µs
- Gain Bandwidth Product: 10MHz
- Current - Input Bias: 0.2pA
- Voltage - Input Offset: 400µV
- Current - Supply: 950µA
- Current - Output / Channel: 80mA
- Voltage - Supply, Single/Dual (±): 2.7V ~ 5.5V, ±1.35V ~ 2.75V
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Die
- Supplier Device Package: Die
- Base Part Number: AD8694
- detail: General Purpose Amplifier 4 Circuit Rail-to-Rail Die
