دیتاشیت PCA9555PW,118

PCA9555

مشخصات دیتاشیت

نام دیتاشیت PCA9555
حجم فایل 264.812 کیلوبایت
نوع فایل pdf
تعداد صفحات 34

دانلود دیتاشیت PCA9555

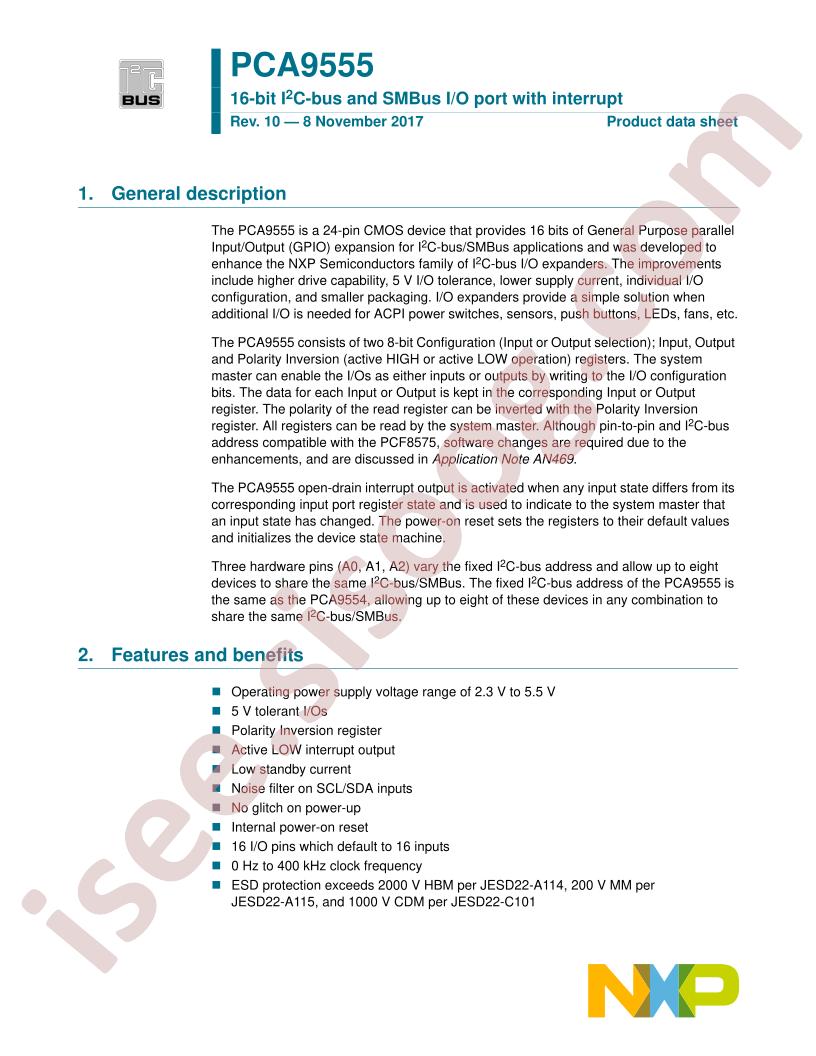

PCA9555 Datasheet

مشخصات

  • RoHS: true
  • Category: Communication Interface Chip/UART/485/232/I/O Expanders
  • Datasheet: NXP Semicon PCA9555PW,118
  • Interface: I2C;SMBus
  • Output Type: Push-pull
  • Number of I/O: 16
  • Supply Voltage: 2.3V~5.5V
  • Clock Frequency: 400kHz
  • Interrupt Output: 有中断输出
  • Output Sink Current: 25mA
  • Operating Temperature: -40°C~+85°C
  • Output Source current: 10mA
  • Package: TSSOP-24
  • Manufacturer: NXP Semicon
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Features: POR
  • Current - Output Source/Sink: 10mA, 25mA
  • Voltage - Supply: 2.3V ~ 5.5V
  • Mounting Type: Surface Mount
  • Package / Case: 24-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package: 24-TSSOP
  • Base Part Number: PCA95
  • detail: I/O Expander 16 I²C, SMBus 400kHz 24-TSSOP
