MCP6561T-E/OTVAO دیتاشیت
مشخصات دیتاشیت
|

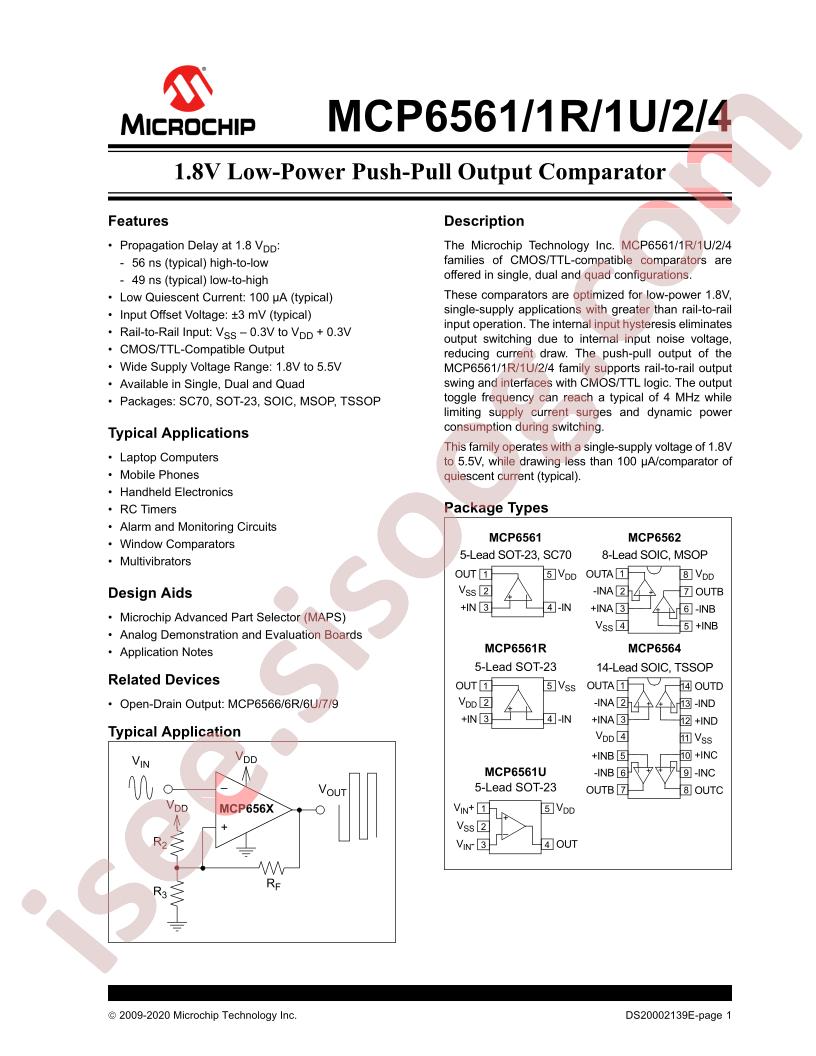

نام دیتاشیت
|
MCP6561/1R/1U/2/4
|
|
حجم فایل
|
844.707
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
50
|
مشخصات فنی
-
Manufacturer:
Microchip Technology
-
Series:
Automotive, AEC-Q100
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
General Purpose
-
Number of Elements:
1
-
Output Type:
CMOS, Push-Pull, Rail-to-Rail, TTL
-
Voltage - Supply, Single/Dual (±):
1.8V ~ 5.5V
-
Voltage - Input Offset (Max):
10mV @ 5.5V
-
Current - Input Bias (Max):
1pA @ 5.5V
-
Current - Output (Typ):
50mA
-
Current - Quiescent (Max):
130µA
-
CMRR, PSRR (Typ):
66dB CMRR, 70dB PSRR
-
Propagation Delay (Max):
80ns
-
Hysteresis:
5mV
-
Operating Temperature:
-40°C ~ 125°C
-
Package / Case:
SC-74A, SOT-753
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-23-5
-
Base Part Number:
MCP6561
-
detail:
Comparator General Purpose CMOS, Push-Pull, Rail-to-Rail, TTL SOT-23-5
