2ASC-12A1HP دیتاشیت

2ASC-12A1HP

مشخصات دیتاشیت

نام دیتاشیت 2ASC-12A1HP
حجم فایل 84.187 کیلوبایت
نوع فایل pdf
تعداد صفحات 19

مشاهده دیتاشیت 2ASC-12A1HP

دانلود دیتاشیت

سایر مستندات

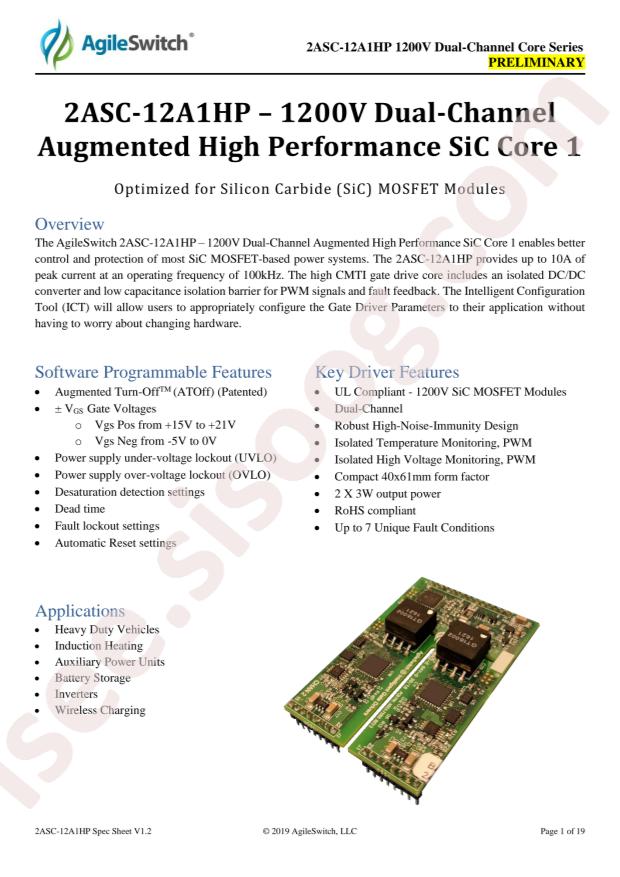

2ASC-12A1HP Preliminary~ 19 pages

مشخصات فنی

  • RoHS: true
  • Feature: -
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech 2ASC-12A1HP
  • Fall Time: 90ns
  • Load Type: MOSFET
  • Rise Time: 80ns
  • Supply Voltage: 14V~16V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Whether the isolation: Non-Insulated
  • Propagation Delay tpHL: -
  • Propagation Delay tpLH: -
  • Peak Output Current(sink): 10A
  • Peak Output Current(source): 10A
  • Package: -
  • Manufacturer: Microchip Tech
  • Series: -
  • Part Status: Active
  • Channel Type: Synchronous
  • Gate Type: P-Channel MOSFET
  • Voltage - Supply: 14V ~ 16V
  • Logic Voltage - VIL, VIH: 1.25V, 3.5V
  • Current - Peak Output (Source, Sink): 10A, 10A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 80ns, 90ns
  • Mounting Type: Through Hole
  • Package / Case: Module
  • Supplier Device Package: Module
  • detail: Half-Bridge Gate Driver IC Non-Inverting Module
