دیتاشیت 62EM1-00001

62EM1 Preliminary~

مشخصات دیتاشیت

نام دیتاشیت 62EM1 Preliminary~
حجم فایل 1029.943 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

دانلود دیتاشیت 62EM1 Preliminary~

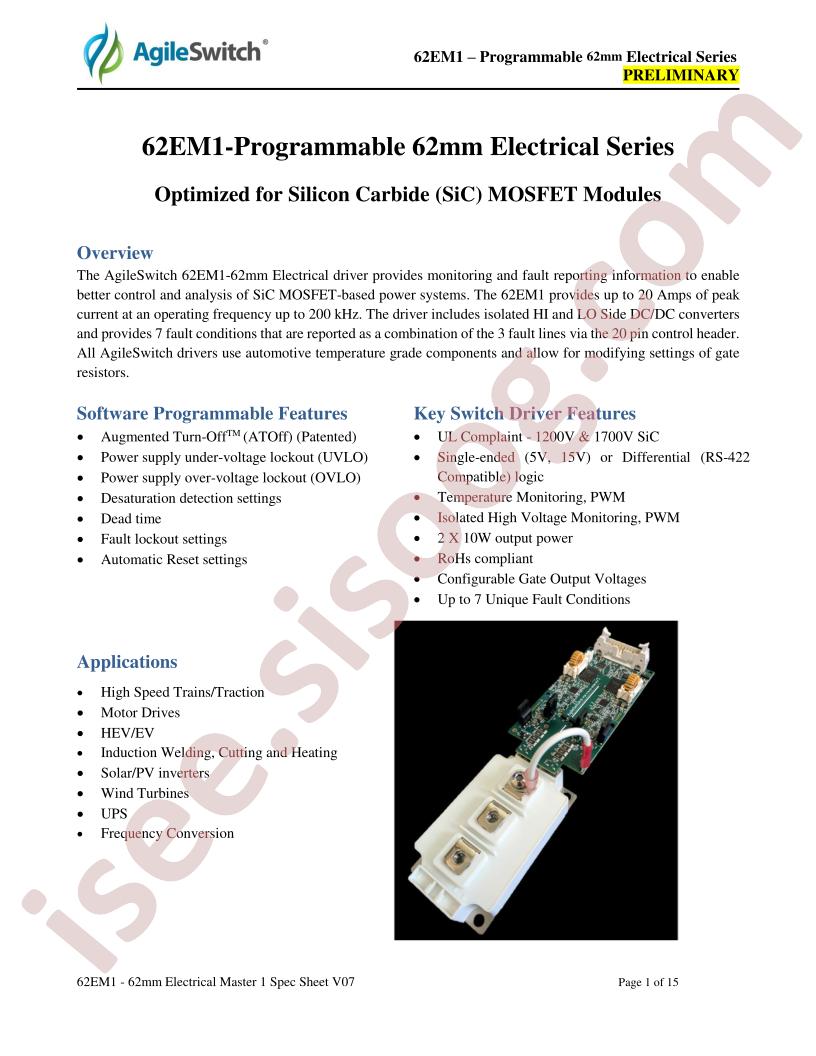

62EM1 Preliminary~ Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Microchip Tech 62EM1-00001
  • Fall Time: 90ns
  • Load Type: MOSFET
  • Rise Time: 80ns
  • Supply Voltage: 14V~16V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+85°C@(Ta)
  • Peak Output Current(sink): 20A
  • Peak Output Current(source): 20A
  • Package: -
  • Manufacturer: Microchip Tech
  • Series: -
  • Part Status: Active
  • Channel Type: Single
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 14V ~ 16V
  • Logic Voltage - VIL, VIH: 4V, 1.25V, 10V, 3.5V
  • Current - Peak Output (Source, Sink): 20A, 20A
  • Input Type: Non-Inverting
  • Rise / Fall Time (Typ): 80ns, 90ns
  • Mounting Type: Chassis Mount
  • Package / Case: Module
  • Supplier Device Package: Module
  • detail: Half-Bridge Gate Driver IC Non-Inverting Module
