دیتاشیت ATTINY20-MMHR
مشخصات دیتاشیت
| نام دیتاشیت | ATTINY20 Summary |
|---|---|
| حجم فایل | 762.763 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 20 |
دانلود دیتاشیت ATTINY20 Summary |

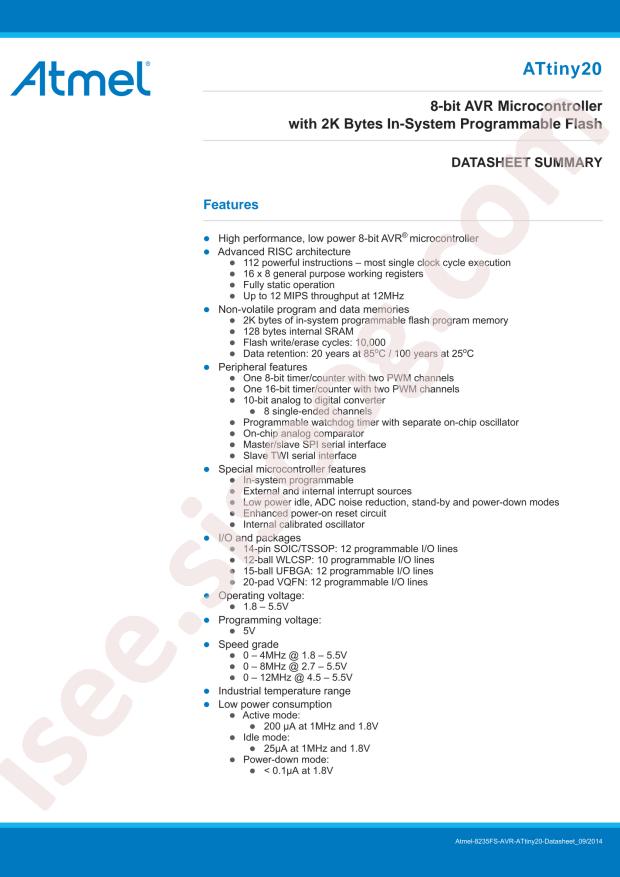

ATTINY20 Summary Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: AVR
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): 10bit
- DAC (Bit): -
- Datasheet: Microchip Tech ATTINY20-MMHR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 12MHz
- GPIO Ports Number: 12
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 1KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-20-EP(3x3)
- Manufacturer: Microchip Tech
- Series: AVR® ATtiny
- Packaging: Cut Tape (CT)
- Part Status: Active
- Core Processor: AVR
- Core Size: 8-Bit
- Speed: 12MHz
- Connectivity: I²C, SPI
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 12
- Program Memory Size: 2KB (1K x 16)
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 5.5V
- Data Converters: A/D 8x10b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 20-VFQFN Exposed Pad
- Supplier Device Package: 20-VQFN (3x3)
- Base Part Number: ATTINY20
- detail: AVR AVR® ATtiny Microcontroller IC 8-Bit 12MHz 2KB (1K x 16) FLASH 20-VQFN (3x3)
