MC68HC11E0CFNE2 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MC68HC11E0CFNE2 |
|---|---|
| حجم فایل | 1719.867 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 242 |
دانلود دیتاشیت MC68HC11E0CFNE2 |
دانلود دیتاشیت |
|---|
سایر مستندات

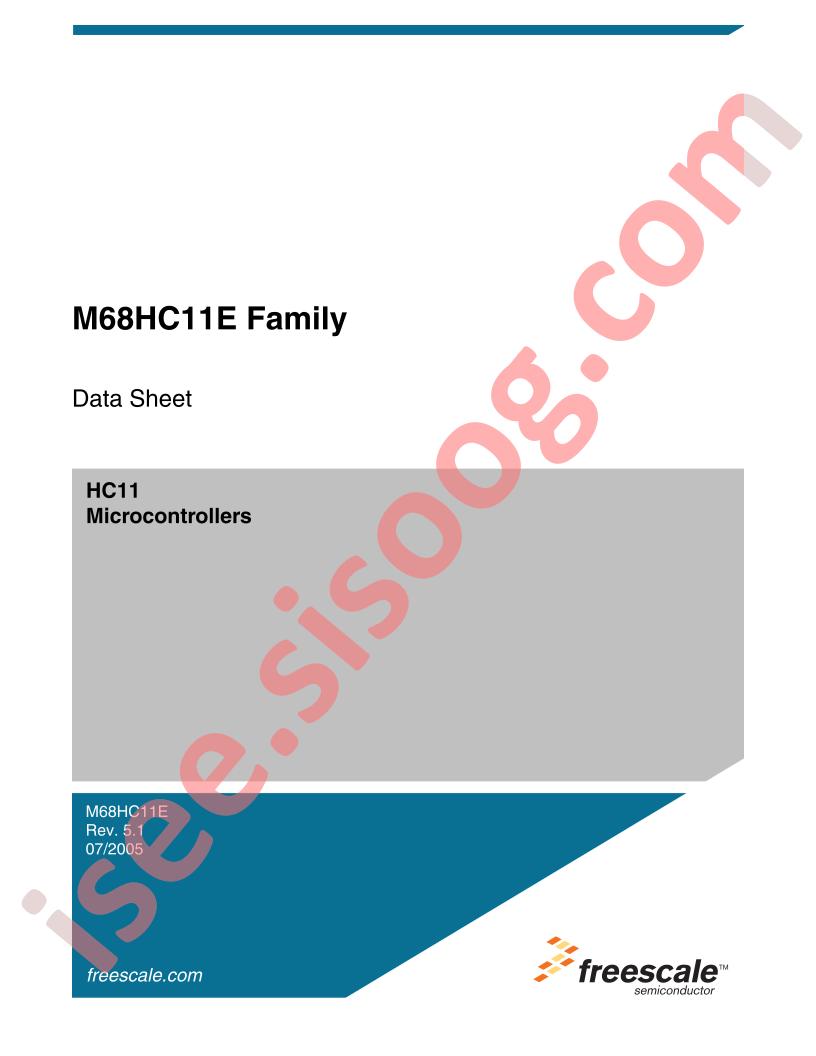

M68HC11E Family 242 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: Other series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): 8bit
- DAC (Bit): -
- Datasheet: NXP Semicon MC68HC11E0CFNE2
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 2MHz
- GPIO Ports Number: 38
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: WDT
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: -
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 4.5V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: PLCC-52
- Manufacturer: NXP Semicon
- Series: HC11
- Packaging: Tray
- Part Status: Not For New Designs
- Core Processor: HC11
- Core Size: 8-Bit
- Speed: 2MHz
- Connectivity: SCI, SPI
- Peripherals: POR, WDT
- Number of I/O: 38
- Program Memory Size: -
- EEPROM Size: -
- Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V
- Data Converters: A/D 8x8b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 52-LCC (J-Lead)
- Supplier Device Package: 52-PLCC (19.1x19.1)
- Base Part Number: MC68
- detail: HC11 HC11 Microcontroller IC 8-Bit 2MHz ROMless 52-PLCC (19.1x19.1)
