دیتاشیت BFU730LXZ

مشخصات دیتاشیت

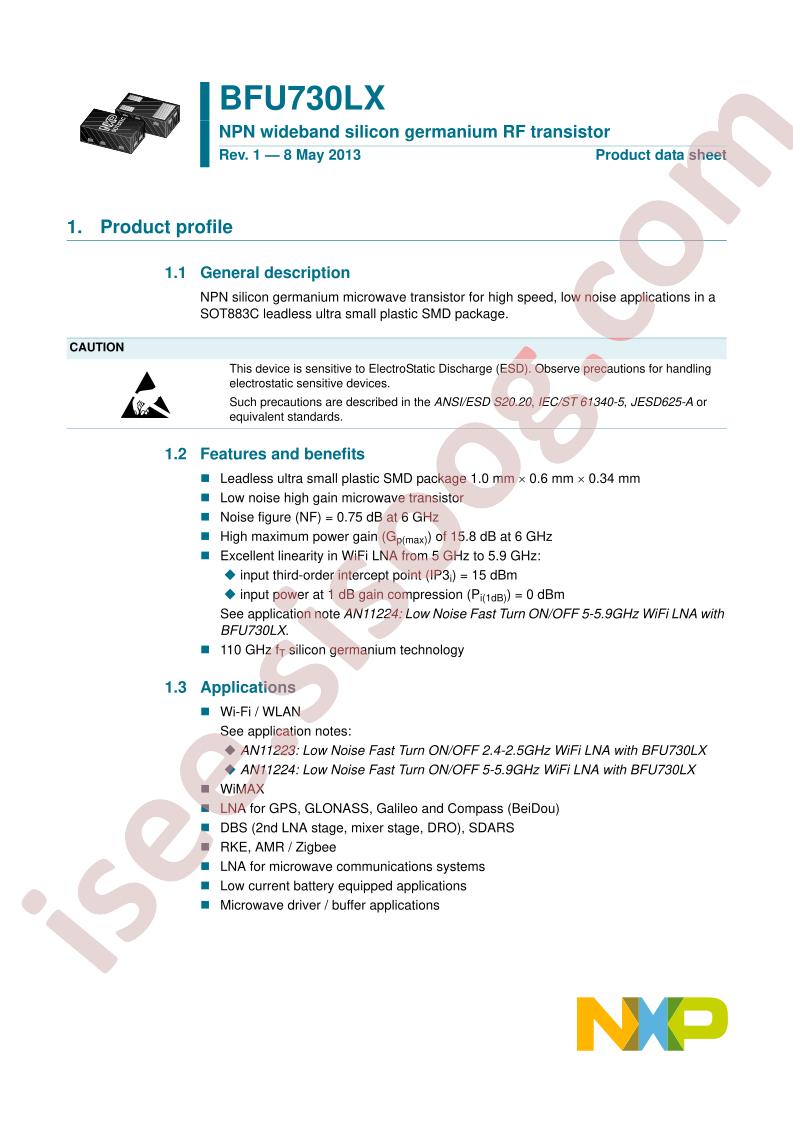

دانلود دیتاشیت BFU730LX	BFU730LX Datasheet

Manufacturer: NXP USA Inc.
Series: -
Packaging: Cut Tape (CT)
Part Status: Active
Transistor Type: NPN
Voltage - Collector Emitter Breakdown (Max): 3V
Frequency - Transition: 53GHz
Noise Figure (dB Typ @ f): 0.75dB @ 6GHz
Gain: 15.8dB
Power - Max: 160mW
DC Current Gain (hFE) (Min) @ Ic, Vce: 205 @ 2mA, 3V
Current - Collector (Ic) (Max): 30mA
Operating Temperature: -
Mounting Type: Surface Mount
Package / Case: 3-XFDFN
Supplier Device Package: 3-DFN1006 (1.0x0.6)
Base Part Number: BFU73
detail: RF Transistor NPN 3V 30mA 53GHz 160mW Surface Mount 3-DFN1006 (1.0x0.6)
